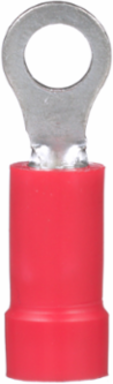

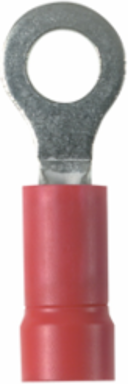

Panduit PV18-6R-CY Pan-Term® PV18-6R-CY Ring Terminal, Red, Vinyl, 16-22 AWG, #6 Stud, PK100
- MPN: PV18-6R-CY
- UPC: 074983694648
- PPN: PAN-PV18-6R-CY
- UNSPSC: 39121409
CAD
$0.64
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The PV18-6R-CY Pan-Term® Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Product Segment | IEI |
| Barrel Type | Funnel Entry |
| Tongue Width (In.) | 0.25 |
| For Use With | CT-100, CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550) |
| Wire Strip Length (In.) | 5/16 |
| Maximum Operating Temperature (°F) | 221 |
| Finish/Coating | Tin-Plated |
| Tongue Width (mm) | 6.4 |
| Tongue Thickness (mm) | 0.8 |
| Base Material | Copper |
| Overall Width (In.) | 0.25 |
| Sub Brand | Pan-Term® |
| Maximum Wire Insulation Diameter (mm) | 3.8 |
| Packaging Type | Bottle |
| Stud Hole Size (mm) | 3.5 |
| Insulation Material | Vinyl |
| Minimum Metric Conductor Size (mm²) | 0.5 |
| Wire Size | 22-18 AWG |
| Any Reason Not to Sell | N |
|---|---|
| Maximum Metric Conductor Size (mm²) | 1.5 |
| Maximum Operating Temperature (°C) | 105 |
| Overall Width (mm) | 6.4 |
| Tongue Thickness (In.) | 0.03 |
| Overall Length (mm) | 21.8 |
| Overall Length (In.) | 0.86 |
| Color Code | Red |
| Stud Hole Size (In.) | #6 |
| Wire Strip Length (mm) | 7.9 |
| Flammability Rating | UL 94 V-0 |
| Maximum Voltage (kV) | 0.6 |
| Maximum Voltage (V) | 600 |
| Maximum Wire Insulation Diameter (In.) | 0.15 |
| Stud Size | #6 |
| Seam Type | Brazed |
| Product Type | Ring Terminal |
| Copper Conductor Size | 22-18 AWG |
Packaging Details
| UPC | 07498369464 |
|---|---|
| Standard Package Volume Ft3 | 0.0074 |
| Std Package Height In | 1.75 |
| Std Package Length In | 3.6 |
| Std Package Width In | 1.8 |
| Std. Pkg. UOM | Piece |
| Std. Pkg. Qty. | 100 |
| Standard Carton Volume Ft3 | 0.0368 |
| Std Carton Height In | 3.8 |
| Std Carton Length In | 9.65 |
| Std Carton Width In | 2.2 |
| Std Ctn Qty | 500 |
| EAN | 00074983694648 |
| California Pro65 Cancer | No |
| Mercury Content Indicator | N |
| Restricted Use of Hazardous Substances | N |
| Min Order Qty | 500.0000 |
| Pallet Volume | 0.000000 |
| RoHS Compliant | Compliant |
| GTIN Package | 00074983694648 |
|---|---|
| Standard Package Weight Pounds | 0.2600 |
| Std Package Height MM | 44.45 |
| Std Package Length MM | 91.44 |
| Std Package Width MM | 45.72 |
| UOM EA PK | PK |
| GTIN Carton | 50074983694643 |
| Standard Carton Weight Pounds | 1.3000 |
| Std Carton Height MM | 96.52 |
| Std Carton Length MM | 245.11 |
| Std Carton Width MM | 55.88 |
| Min. Order UOM | Piece |
| REACH Status | N |
| ARRA Compliant | Y |
| Lead Content Indicator | N |
| Hazardous Material Flag | N |
| Pallet Quantity | 0 |
| Pallet Weight | 0.0000 |
