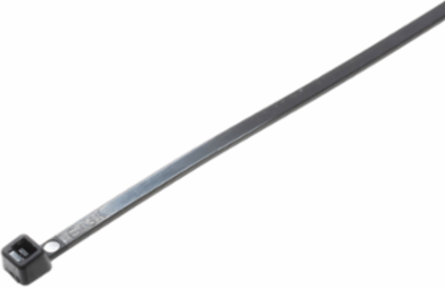

Panduit S14-120-L0 StrongHold™ S14-120-L0 Cable Tie, Black, PA 6.6, 120lb Min Loop Tensile, 14.49"
- MPN: S14-120-L0
- UPC: 613056258235
- PPN: PAN-S14-120-L0
- UNSPSC: 39121703
CAD
$0.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The S14-120-L0 StrongHold Cable Ties offers contractors an economical cable tie option for commercial construction and general-purpose applications. Light-heavy, 14.49” (368mm) length and are AH-2 Plenum rated. For outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 50.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Thailand, China
- Product Segment
- IEI
- Body Thickness (In.)
- 0.063
- Body Width (mm)
- 7.6
- Overall Length (mm)
- 368
- Body Thickness (mm)
- 1.6
- Product Type
- Cable Tie
- Overall Length (In.)
- 14.5
- Maximum Bundle Diameter (In.)
- 4
- Maximum Operating Temperature (°F)
- 185
- Environment
- Plenum
- Minimum Bundle Diameter (In.)
- 0.28
- Minimum Loop Tensile Strength (N)
- 534
Any Reason Not to SellN
Minimum Operating Temperature (°F)-40
Minimum Bundle Diameter (mm)7
Minimum Loop Tensile Strength (lb)120
Maximum Operating Temperature (°C)85
Maximum Bundle Diameter (mm)102
Body Width (In.)0.3
Minimum Operating Temperature (°C)-40
MaterialNylon 6.6
ColorBlack
Resistance PropertiesUV-Resistant
Sub BrandStrongHold™
Material DescriptionNylon 6.6 (UV-Resistant)
Packaging Details
- UPC
- 61305625823
- Standard Package Volume Ft3
- 0.0451
- Std Package Height In
- 1.5
- Std Package Length In
- 16.5
- Std Package Width In
- 5.75
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 50
- Standard Carton Volume Ft3
- 0.4515
- Std Carton Height In
- 4.4
- Std Carton Length In
- 17.15
- Std Carton Width In
- 10.15
- Std Ctn Qty
- 500
- EAN
- 00613056258235
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Hazardous Material Flag
- N
- Pallet Quantity
- 32,000
- Pallet Weight
- 330.8800
GTIN Package00613056258235
Standard Package Weight Pounds0.5170
Std Package Height MM38.1
Std Package Length MM419.1
Std Package Width MM146.05
UOM EA PKPK
GTIN Carton50613056258230
Standard Carton Weight Pounds5.1700
Std Carton Height MM111.76
Std Carton Length MM435.61
Std Carton Width MM257.81
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Restricted Use of Hazardous SubstancesN
Min Order Qty500.0000
Pallet Volume28.895833
RoHS CompliantCompliant
