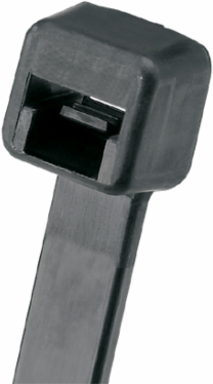

Panduit PLT4S-C0 Pan-Ty® PLT4S-C0 Cable Tie, Black, UV PA6.6, 14.5"L, 50lb, PK100
Panduit PLT4S-C0 Pan-Ty® PLT4S-C0 Cable Tie, Black, UV PA6.6, 14.5"L, 50lb, PK100
- MPN: PLT4S-C0
- UPC: 074983540846
- PPN: PAN-PLT4S-C0
- UNSPSC: 39121703
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$0.64/ EA
Description
Panduit PLT4S-C0 Locking Cable Ties are designed to satisfy the needs of general applications, while delivering consistent performance and reliability. Featuring a curved tip to allow for easy pick up from flat surfaces and faster initial threading. Standard cross section, 14.5” (368mm) length. For Indoor/Outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 100.
Specifications
Specifications
- Country of Origin
- Malaysia
- Product Segment
- IEI
- Overall Length (In.)
- 14.5
- Color
- Black
- Body Width (In.)
- 0.19
- Body Thickness (In.)
- 0.052
- Minimum Operating Temperature (°C)
- -60
- Maximum Operating Temperature (°C)
- 85
- Minimum Bundle Diameter (mm)
- 1.5
- Maximum Operating Temperature (°F)
- 185
- Material
- Nylon 6.6
- For Use With
- GTS-E, GS2B-E, GTH-E, GS4H-E, PTS, PPTS, PTH, STS2, STH2
- Environment
- Indoor/Outdoor
- Minimum Operating Temperature (°F)
- -76
Any Reason Not to SellN
Body Width (mm)4.8
Minimum Loop Tensile Strength (lb)50
Minimum Installation Temperature (°F)-4
Maximum Bundle Diameter (mm)102
Maximum Bundle Diameter (In.)4
Overall Length (mm)368
Minimum Loop Tensile Strength (N)222
Resistance PropertiesUV-Resistant, Weather-Resistant
Minimum Bundle Diameter (In.)0.06
Minimum Installation Temperature (°C)-20
Body Thickness (mm)1.3
Product TypePremium Cable Tie
Material DescriptionNylon 6.6 (UV-Resistant, Weather-Resistant)
Packaging Details
- UPC
- 07498354084
- Standard Package Volume Ft3
- 0.0502
- Std Package Height In
- 1.8
- Std Package Length In
- 15.9
- Std Package Width In
- 5.05
- Std. Pkg. UOM
- Piece
- Std. Pkg. Qty.
- 100
- Standard Carton Volume Ft3
- 0.5016
- Std Carton Height In
- 6
- Std Carton Length In
- 16.65
- Std Carton Width In
- 8.9
- Std Ctn Qty
- 1000
- EAN
- 00074983540846
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 1,000.0000
- Pallet Volume
- 48.156250
- RoHS Compliant
- Compliant
GTIN Package00074983540846
Standard Package Weight Pounds0.6500
Std Package Height MM45.72
Std Package Length MM403.86
Std Package Width MM128.27
UOM EA PKPK
GTIN Carton50074983540841
Standard Carton Weight Pounds6.5000
Std Carton Height MM152.4
Std Carton Length MM422.91
Std Carton Width MM226.06
Min. Order UOMPiece
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity96,000
Pallet Weight624.0000
