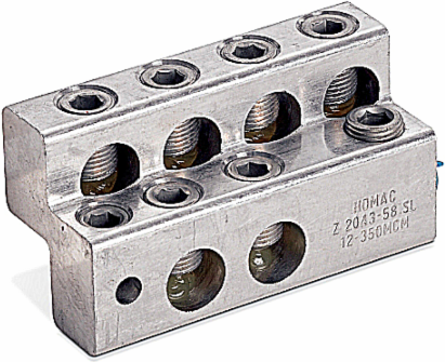

Homac Z 2043-58 SLC Stud-Mount Transformer Connector
Homac Z 2043-58 SLC Stud-Mount Transformer Connector
- MPN: Z 2043-58 SLC
- PPN: T-B-Z 2043-58 SLC
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$81.25/ EA
Description
Aluminum Universal Quick Disconnect Transformer Connectors - Z-SL Series, cable range 12-350, length 4-1/4 in, height 2-3/8 inch, stud type 5/8 inch, outlets 6, with Oxide Inhibitor
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121443 Electrical underground bus connector
- Brand Name
- Homac
- Special Features
- Compact Zeebar design halves cantilever stress and doubles cable capacity. Easy to install with all screws on top. A 5/16 inch hex wrench does it all - including the street light option. Fits both 5/8 and 1 inch studs. Dual Rated to accept Copper or Aluminum Conductors. Ball-Bottom screws ensure maximum conductor contact pressure and break up interstrand oxides.
- Standard
- ANSI C119.4
- Connection
- Mechanical
- Number Of Conductors
- 6
IGCC4663 Electrical underground bus connector
TypeStud-Mount Transformer Connector
ApplicationCompact Secondary Transformer Connector with a Street Light Outlet
Size4-1/4 inch x 2-3/8 inch high
Conductor Range12 to 350 kcmil
MaterialAluminum
Packaging
- Outer Quantity
- 35
- Weight Uom
- 0.73 lbs. Each
Outer Dimensions (inches)13.375x8.25x7.875
