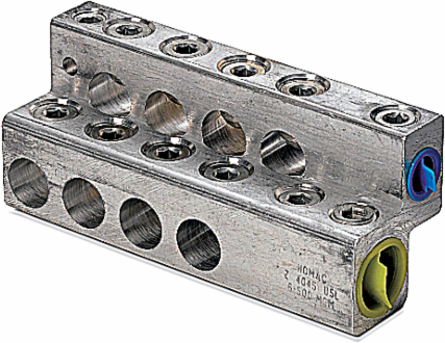

Homac Z4045USLCW/EZ5912-7 Stud-Mount Transformer Connector
- MPN: Z4045USLCW/EZ5912-7
- UPC: 783786762231
- PPN: T-B-Z4045USLCW/EZ5912-7
CAD
$215.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Universal Quick Disconnect Transformer Connectors - Z-USL Series, cable range 6-500, length 6-13/16 inch, height 2-7/8 inch, stud type 5/8 & 1, outlets 8, with Oxide Inhibitor with EZ 5912-7 Clear PVC Insulating Boot
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121443 Electrical underground bus connector
- Brand Name
- Homac
- Special Features
- Compact Zeebar design halves cantilever stress and doubles cable capacity. Easy to install with all screws on top. A 5/16 inch hex wrench does it all - including the street light option. Fits both 5/8 and 1 inch studs. Dual Rated to accept Copper or Aluminum Conductors. Ball-Bottom screws ensure maximum conductor contact pressure and break up interstrand oxides.
- Standard
- ANSI C119.4
- Connection
- Mechanical
- Number Of Conductors
- 8
- Insulation
- Insulating Boot
IGCC4663 Electrical underground bus connector
TypeStud-Mount Transformer Connector
ApplicationCompact Secondary Transformer Connector with a Street Light Outlet
Size6-13/16 inch long x 2-7/8 inch high
Conductor Range6 to 500 kcmil
MaterialAluminum
Packaging
- Outer Quantity
- 10
- Weight Uom
- 2.3 lbs. Each
Outer Dimensions (inches)13.875x8.625x17.875
