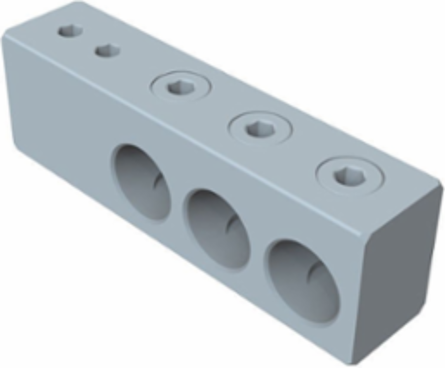

CMC NSSM750-8I Stud-mount transformer connectors
CMC NSSM750-8I Stud-mount transformer connectors
- MPN: NSSM750-8I
- UPC: 192663073597
- PPN: HBL-C58700344I
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$141.68/ EA
Description
Stud-mount transformer connectors, Dual rated connectors for Aluminum or Copper conductors
Features
- NSSM with patented Keyhole mounting.
- Clear plated for low-contact resistance.
- Fully tested to ANSI C119.4 for Class ‘A’ connectors.
- Offers fast, economical, reusable, dependable connections for right or left-hand installations.
- Supplied with aluminum radial-tipped set-screws.
- Connector fabricated from 6061-T6 aluminum alloy for conductivity and strength.
- 105°C Rated black plastisol cover available.
- Includes CO-OX oxide inhibitor in all conductor holes and stud-mounting hole.
- Each unit individually wrapped and labeled for ease of identification and cleanliness.
- For installation, CMC® recommends the use of a 9” insulated Allen wrench.
- A torque wrench should be used to ensure the proper torque is achieved.
Specifications
Specifications
- Country of Origin
- US
- Height
- 1.88 in
- Voltage Rating
- 600 V
- Conductor Range
- 750 Kcmil - #2 AWG
- Class Code
- C02
- Harmonization Code
- 7616107030
- Sub Class Code
- C02C203
- Base Unit of Measure
- EA
- Case - SCC-14 Next Lower Level Sub Pack
- 30192663073598
- Package Quantity
- 6 EA
Dimensions12.63 in x 1.38 in x 1.88 in
Length12.63 in
Width1.38 in
Number Of Conductors8
Freight Class Code06120000
Image Actual Or RepresentativeA
MaterialAluminum Alloy, 6061-T6
Carton - SCC-14 Next Lower Level Sub Pack00192663073597
Package - GTIN - Package30192663073598
Package Weight2.233 lb.
