Leviton

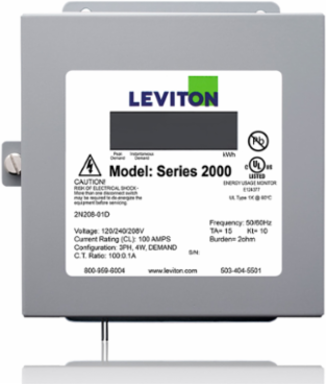

Leviton 2N208-1D Series 2000 Indoor Electric Submeter, 3 Phase 4 Wire, 100A Max

Series 2000 Indoor Electric Submeter, 3 Phase 4 Wire, 100A Max
  • MPN: 2N208-1D
  • UPC: 078477555477
  • PPN: LEV-2N208-1D

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1148.41/ EA

Description

Series 2000 Submeter, Three Element Demand, 120/208/240V, 3PH, 4W, Line-to-Line, 100:0.1A ratio, Max 100A, Indoor Surface Mount Enclosure. SUBMETER ONLY. Requires (3) 100A Current Transformers, Electric Meter: Yes, Title 24 compliant, ASHRAE 90.1 compliant

Features

  • • Measures kWh and demand (optional) • Conform to all applicable standards of ANSI C12.1 • Equipped with an Isolated Pulse Output channel • Utilizes revenue grade 0.3% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs • Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier • Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor • Interfaces with numerous communication systems – Hardwired Automatic Meter Reading (AMR) or wireless AMR • Large LCD display shows kWh and instantaneous and peak demand (optionally) with manual keyed reset • Load Indicator LED verifies meter functionality • Reverse Phase Indicator LED illuminates if the meter is improperly installed • UL/cUL Listed for UL 916 Energy Monitoring Equipment • Five year warranty
  • The Leviton VerifEye™ Series 2000 line of revenue-grade submeters meets all measurement and verification-based opportunities – including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, Series 2000 submeters are easy to specify and install for new construction and retrofits. Do you have a question about submetering? Contact us to learn more.

Specifications

Specifications

Country of Origin
United States
RoHS CompliantFalse

Product Features

CTs Included
No Meter Only
Enclosure
Indoor (NEMA 1)
Product Line
Series 2000
CommunicationPulse Output
Meter ConfigurationSingle Meter
Product TypeElectric Submeter

Standards and Certifications

Buy American Act (BAA) Compliant
Yes

Electrical Specifications

Amperage
100 A
Voltage120/240/208 VAC 3PH 4W

Downloads
