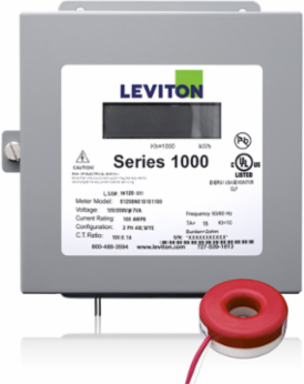

Leviton 1K120-1SW Series 1000 Submeter Kit, 120V, Max 100A, 1 Solid Core CT

Description

Features

• Measures kWh and demand (optional)
• Conforms to all applicable standards of ANSI C12.1
• Equipped standard with an Isolated Pulse Output channel for easy AMR/BAS/BMS/EMS interface
• Utilizes revenue-grade 0.5% accuracy class 0.1A secondary solid core Current transformers (CTs) that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs
• Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier
• Enclosure options include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
• Interfaces with numerous communication systems – Hardwired Automatic Meter Reading (AMR) or wireless AMR
• Large LCD display shows kWh and optional peak and instantaneous kW with Demand Reset
• Load Indicator LED verifies meter functionality
• Reverse Phase Indicator LED illuminates if the meter is improperly installed
• CT lead length maximum: 48”
• UL/cUL Listed Energy Usage Monitor per CCN FTRZ
• Five year warranty
• The Leviton VerifEye™ Series 1000 line of revenue-grade submeters meets all measurement and verification-based opportunities including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, Series 1000 Submeters are easy to specify and install for new construction and retrofits. Do you have a question about submetering? Contact us to learn more.
