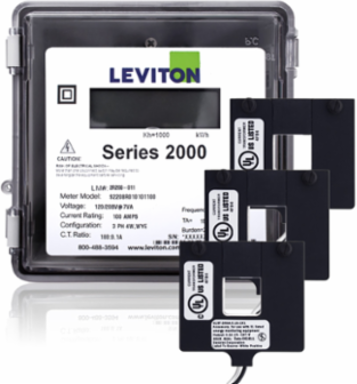

Leviton 2O208-1W Series 2000 Submeter Kit, 120/208V, 100A, 3 Split Core Current Transformers, NEMA 4X
- MPN: 2O208-1W
- UPC: 078477598399
- PPN: LEV-2O208-1W
CAD
$2009.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Discontinued Product. Series 2000 Submeter, 120/208V 3P/4W 100A Outdoor kWh Meter Kit w/3 Split Core Current Transformers (CT)
Features
- • Measures kWh and demand (optional) • Conform to all applicable standards of ANSI C12.1 • Equipped with an Isolated Pulse Output channel • Utilizes revenue grade 0.5% accuracy class 0.1A secondary solid core CTs that conform to all applicable ANSI requirements or 1.0% accuracy split-core CTs • Up to three sets of CTs per phase can be paralleled per meter without the need for a meter multiplier • Enclosure options include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor • Interfaces with numerous communication systems – Hardwired Automatic Meter Reading (AMR) or wireless AMR • Large LCD display shows kWh and optional peak and instantaneous kW with demand reset • Load Indicator LED verifies meter functionality • Reverse Phase Indicator LED illuminates if the meter is improperly installed • CT Lead length maximum: 48” • UL/cUL Listed Energy Usage Monitor pre CCN FTR7 • Five year warranty
- The Leviton VerifEye™ Series 2000 line of revenue-grade submeters meets all measurement and verification-based opportunities including load management and LEED rating achievement. Designed to provide a simple and effective process for accurately capturing measurements of power consumption, Series 2000 meters are easy to specify and install for new construction and retrofits. Do you have a question about submetering? Contact us to learn more.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
RoHS CompliantFalse
Standards and Certifications
- Buy American Act (BAA) Compliant
- Yes
Product Features
- CTs Included
- 3 Split Core CTs
- Enclosure
- Outdoor (NEMA 4X)
- Product Line
- Series 2000 Kit
CommunicationPulse Output
Meter ConfigurationSingle Meter
Electrical Specifications
- Amperage
- 100 A
Voltage120/208 VAC 3PH 4W
Type
- Product Type
- Submeter and Current Transformer(s)
