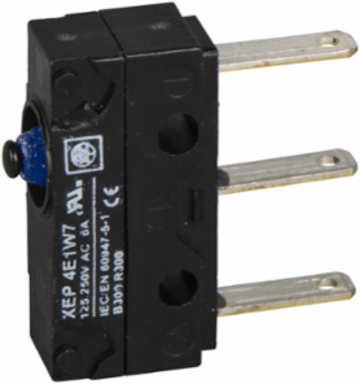

Telemecanique Sensors XEP4E1W7 Microswitch, Limit switches XC Standard, miniature limit switch, flat plunger, 2.8 mm cable clip tags
- MPN: XEP4E1W7
- PPN: TES-XEP4E1W7
CAD
$23.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Microswitch, Limit switches XC Standard, miniature limit switch, flat plunger, 2.8 mm cable clip tags
Documentation & Downloads
Specifications
Key Specifications
- Movement Of Operating Head
- linear
- Electrical Connection
- 2.8 mm cable clip tags
- Product Or Component Type
- microswitch
- Switch Actuation
- on end
- Contacts Type And Composition
- 1 C/O standard
- Contact Operation
- snap action
- Type Of Operator
- plunger
Range Of ProductOsiSense XC
Contacts MaterialAgCdO
Head Typeplunger head
Series Namespecial format
Type Of Approachvertical approach
Detector Designsubminiature, DIN 41635 B format, sealed
Device Short NameXEP4
Complementary
- Height
- 10 mm
- Inter Contact Distance
- 0.4 mm
- Minimum Release Force
- 0.8 N lever fixing position in A || 0.8 N lever fixing position in B
- Net Weight
- 2.4 g
- Maximum Differential Travel
- 0.13 mm lever fixing position in A || 0.13 mm lever fixing position in B
- Body Material
- polyester
- Maximum Force For Tripping
- 2.5 N lever fixing position in A || 2.5 N lever fixing position in B
- Tags Material
- tinned brass
- Depth
- 20 mm
Terminals Description Iso N°1(1-2-4)OC
Minimum Over Travel0.6 mm lever fixing position in A || 0.6 mm lever fixing position in B
[Ith] Conventional Free Air Thermal Current7.5 A 250 V 50/60 Hz
Maximum Permissible End Of Travel Force10 N lever fixing position in A || 10 N lever fixing position in B
Mechanical Durability2000000 cycles
Tripping Point8.4 mm lever fixing position in A || 8.4 mm lever fixing position in B
Contact Code DesignationB300, AC-15 (Ue = 240 V, Ie = 1.5 A)EN/IEC 60947-5-1 appendix A || R300, DC-13 (Ue = 250 V, Ie = 0.1 A)EN/IEC 60947-5-1 appendix A
Width6 mm
Environment
- Ambient Air Temperature For Operation
- -40-125 °C
- Marking
- CE
StandardsEN 60947-5-1 || IEC 60947-5-1 || cURus || UL 1054 || EN 61058
Ip Degree Of ProtectionIP67
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110614EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
