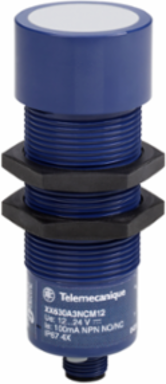

Telemecanique Sensors SM952A124000 Hyde Park, Ultrasonic sensor, dual level, dual setpoint, 30 mm barrel, 12 24 V DC

This product is part of the Hyde Park range, an offer of ultrasonic sensors. This ultrasonic sensor in a cylindrical M30 design and adjustable sensing type window. It supports 1m nominal sensing distance and 1 NO NPN discrete output. It is an ultrasonic sensor with a rated supply voltage of 12V to 24V DC with overload, short circuit protection and current consumption of 100mA. It is furnished with 4-pin M12 male connector for electrical connection. It is an IP67 and NEMA 4X rated product. The enclosure is made of ULTEM with silicone rubber front. The sensor dimensions are 96mm (length) x 34.7mm (width) x 30mm (height). It weighs 0.26kg. The sensor is an M30 thread barrel sensor of ULTEM™ plastic with an M12 4-pin male connector. It is suitable for packaging, automotive, food and beverage processing applications. This product is certified by CE and UL. The Hyde Park ultrasonic sensors operate in diffuse, reflex and thru beam modes. This range of sensors even includes long distance detection models. Hyde Park ultrasonic sensors perform contactless, reliable and high performance detection regardless of the target's shape, texture, color or transparency.
