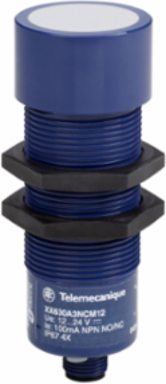

Telemecanique Sensors SM952A126000 Ultrasonic dual-level sensor SM, 30 mm barrel, 12-24 V DC, dual setpoint, material Plastic, discrete output type NPN, discrete output function 1 NO (SM952A126000)
- MPN: SM952A126000
- PPN: TES-SM952A126000
CAD
$1001.47
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Ultrasonic dual-level sensor SM, 30 mm barrel, 12-24 V DC, dual setpoint, material Plastic, discrete output type NPN, discrete output function 1 NO (SM952A126000)
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Minimum size of detected object | Cylinder diameter 1.6 mm - up to 305 mm sensing distance |
|---|
| Current consumption | 100 mA |
|---|
Main
| Range of product | Hyde Park |
|---|---|
| Series name | Superprox 900 |
| Material | Plastic |
| Type of sensing window | Adjustable |
| Wiring technique | 4-wire |
| Discrete output type | NPN |
| Electrical connection | Male connector M12 4 pins |
| Enclosure material | ULTEM |
| Sensor type | Ultrasonic sensor |
|---|---|
| Sensor design | Cylindrical M30 |
| Type of output signal | Discrete |
| Discrete output function | 1 NO |
| Rated supply voltage (Us) | 12...24 V DC with overload and short-circuit protection |
| ISO thread | M30 x 1.5 |
| Product specific application | Dual-level - setpoint |
| Front material | Silicone rubber |
Environment
| IP degree of protection | IP67 |
|---|---|
| Product certifications | UL |
| Vibration resistance | +/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Marking | CE |
|---|---|
| NEMA degree of protection | NEMA 4X (indoor use only) |
| Shock resistance | 30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
