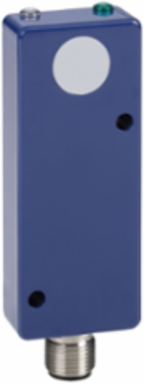

Telemecanique Sensors SM652A31689FP Hyde Park, Ultrasonic sensor, dual level, alarm, subcompact flat profile, 12 24 V DC
- MPN: SM652A31689FP
- PPN: TES-SM652A31689FP
CAD
$824.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hyde Park, Ultrasonic sensor, dual level, alarm, subcompact flat profile, 12 24 V DC
Documentation & Downloads
Specifications
Key Specifications
- Type Of Sensing Window
- fixed
- Discrete Output Type
- PNP/NPN
- Type Of Output Signal
- discrete
- Supply Voltage Limits
- 10-28 V DC
- Sensor Type
- ultrasonic sensor
- Sensor Design
- flat form subcompact
- Front Material
- silicone rubber
- Device Short Name
- SM652
- Wiring Technique
- 4-wire
Series NameSuperprox 600
Discrete Output Function1 NC
Range Of ProductHyde Park
Product Specific Applicationdual-level - alarm
Electrical Connectionmale connector M12 4 pins
Enclosure MaterialULTEM
Materialplastic
[Us] Rated Supply Voltage12...24 V DC overload and short-circuit protection
Complementary
- Beam Angle
- 7 °
- Minimum Size Of Detected Object
- cylinder diameter 1.59 mm - up to 63.5 mm sensing distance
- Transmission Frequency
- 500 kHz
- Depth
- 16.25 mm
- Blind Zone
- 19-19 mm
- Length
- 84.32 mm
- Current Consumption
- 60 mA
Height16.25 mm
Maximum Switching Current100 mA reverse polarity protection
Width30 mm
[Sn] Nominal Sensing Distance76.2-76.2 mm
[Sd] Sensing Range50.8-76.2 mm
Net Weight0.045 kg
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Relative Humidity
- 100-100 % without condensation
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Marking
- CE
- Ip Degree Of Protection
- IP67
Ambient Air Temperature For Operation0-60 °C
Ambient Air Temperature For Storage-40-100 °C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Fast Transients1 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach RegulationReference contains Substances of Very High Concern above the threshold
