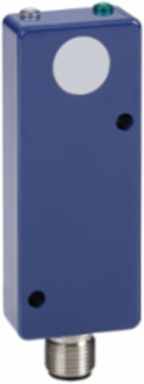

Telemecanique Sensors SM656A43200HFP Hyde Park, Ultrasonic sensor, analog, voltage (V), subcompact flat profile, 15 24 V DC
- MPN: SM656A43200HFP
- PPN: TES-SM656A43200HFP
CAD
$952.33
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Hyde Park, Ultrasonic sensor, analog, voltage (V), subcompact flat profile, 15 24 V DC
Documentation & Downloads
Specifications
Key Specifications
| Type Of Sensing Window | fixed |
|---|---|
| Type Of Output Signal | analog |
| Supply Voltage Limits | 13-28 V DC |
| Sensor Type | ultrasonic sensor |
| Sensor Design | flat form subcompact |
| Front Material | silicone rubber |
| Device Short Name | SM656 |
| [Us] Rated Supply Voltage | 15...24 V DC overload and short-circuit protection |
| Series Name | Superprox 600 |
|---|---|
| Range Of Product | Hyde Park |
| Product Specific Application | analog output |
| Electrical Connection | male connector M12 4 pins |
| Enclosure Material | ULTEM |
| Material | plastic |
| Analogue Output Range | 0...10 V inverse |
| Wiring Technique | 4-wire |
Complementary
| Beam Angle | 10 ° |
|---|---|
| Minimum Size Of Detected Object | cylinder diameter 1.59 mm - up to 63.5 mm sensing distance |
| Transmission Frequency | 500 kHz |
| Depth | 16.25 mm |
| Blind Zone | 51-51 mm |
| Length | 84.32 mm |
| Current Consumption | 50 mA |
| Height | 16.25 mm |
|---|---|
| Maximum Switching Current | 100 mA reverse polarity protection |
| Width | 30 mm |
| [Sn] Nominal Sensing Distance | 101.6-101.6 mm |
| [Sd] Sensing Range | 50.8-101.6 mm |
| Net Weight | 0.045 kg |
Environment
| Product Certifications | UL |
|---|---|
| Resistance To Electromagnetic Fields | 10 V/m level 3 IEC 61000-4-3 |
| Relative Humidity | 100-100 % without condensation |
| Vibration Resistance | +/-1 mm 10-55 Hz)IEC 60068-2-6 |
| Marking | CE |
| Ip Degree Of Protection | IP67 |
| Ambient Air Temperature For Operation | 0-60 °C |
|---|---|
| Ambient Air Temperature For Storage | -40-100 °C |
| Nema Degree Of Protection | NEMA 4X indoor use only) |
| Shock Resistance | 30 gn in all 3 axes 11 ms IEC 60068-2-27 |
| Resistance To Fast Transients | 1 kV level 3 IEC 61000-4-4 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
|---|
