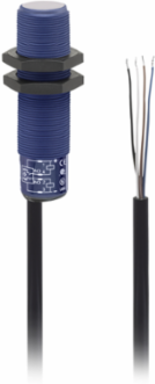

Telemecanique Sensors SM602A3011316 Hyde Park, Ultrasonic sensor, dual level, pump in latch, 18 mm barrel, 12 24 V DC
- MPN: SM602A3011316
- PPN: TES-SM602A3011316
- UNSPSC: 39122230
CAD
$798.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Hyde Park range, an offer of ultrasonic sensors. This ultrasonic sensor has a cylindrical M18 design and fixed sensing type window. It supports 76.2mm nominal sensing distance and 1 NO PNP/NPN discrete output. The ultrasonic sensor with a rated supply voltage of 12V to 24V DC and current consumption of 50mA. It is furnished with 4.87m cable for electrical connection. It is an IP67 and NEMA 4X rated product. The enclosure is made of ULTEM with silicone rubber front. Its dimensions are 64.77mm x (length) x 18mm x (width) x 18mm x (height). It is suitable for packaging, automotive, food and beverage processing applications. This product is certified by CE and UL. The Hyde Park ultrasonic sensors operate in diffuse, reflex and thru beam modes. This range of sensors even includes long distance detection models. Hyde Park ultrasonic sensors perform contactless, reliable, and high performance detection regardless of the target's shape, texture, color, or transparency.
Documentation & Downloads
Specifications
Key Specifications
- Iso Thread
- M18 x 1
- Series Name
- Superprox 600
- Discrete Output Function
- 1 NO
- Range Of Product
- Hyde Park
- Product Specific Application
- dual-level - pump-in latch
- Electrical Connection
- cable, 4.87 m
- Enclosure Material
- ULTEM
- Material
- plastic
- [Us] Rated Supply Voltage
- 12...24 V DC overload and short-circuit protection
Type Of Sensing Windowfixed
Discrete Output TypePNP/NPN
Type Of Output Signaldiscrete
Supply Voltage Limits10-28 V DC
Sensor Typeultrasonic sensor
Sensor Designcylindrical M18
Front Materialsilicone rubber
Device Short NameSM602
Wiring Technique4-wire
Complementary
- Beam Angle
- 7 °
- Minimum Size Of Detected Object
- cylinder diameter 1.59 mm - up to 63.5 mm sensing distance
- Transmission Frequency
- 500 kHz
- Depth
- 18 mm
- Blind Zone
- 19-19 mm
- Length
- 64.77 mm
Height18 mm
Maximum Switching Current100 mA reverse polarity protection
Width18 mm
[Sn] Nominal Sensing Distance76.2-76.2 mm
[Sd] Sensing Range74.61-76.2 mm
Current Consumption50 mA
Environment
- Product Certifications
- UL
- Resistance To Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Relative Humidity
- 100-100 % without condensation
- Vibration Resistance
- +/-1 mm 10-55 Hz)IEC 60068-2-6
- Marking
- CE
- Ip Degree Of Protection
- IP67
Ambient Air Temperature For Operation0-60 °C
Ambient Air Temperature For Storage-40-100 °C
Nema Degree Of ProtectionNEMA 4X indoor use only)
Shock Resistance30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Fast Transients1 kV level 3 IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Eu Rohs Directive
- Not applicable, out of EU RoHS legal scope
- California Proposition 65
- WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach RegulationReference contains Substances of Very High Concern above the threshold
