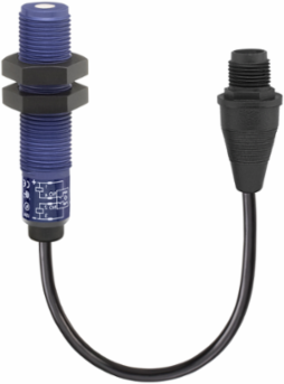

Telemecanique Sensors SM380A11200 Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC
- MPN: SM380A11200
- UPC: 785901475989
- PPN: TES-SM380A11200
- UNSPSC: 39122230
CAD
$323.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Hyde Park, Ultrasonic sensor, discrete, 12 mm barrel, 12 24 V DC
Documentation & Downloads
Specifications
Additional
- Supply Voltage
- 12...24 V DC overload and short-circuit protection
- Maximum Switching Current
- 100 mA reverse polarity protection
- Sensing Range
- 6.4...25.4 mm
- Blind Zone
- 6.4 mm
- Current Consumption
- 25 mA
- Beam Angle
- 8°
- Storage Temperature
- -40...100 °C
- Vibration Resistance
- +/-1 mm 10-55 Hz IEC 60068-2-6
- Resistance to Electromagnetic Fields
- 10 V/m level 3 IEC 61000-4-3
- Length
- 58.16 mm
- Height
- 12 mm
- Net Weight
- 0.011 kg
- Electrical Connection
- Remote male connector M12 4 pins, 152 mm
- Sensor Design
- Cylindrical M12
- Type of Sensing Window
- Fixed
- Discrete Output Function
- 1 NO
- Enclosure Material
- ULTEM
- Product Certifications
- UL
- NEMA Degree of Protection
- NEMA 4X indoor use only
- Country of Origin
- US
- Brand
- SM380
Discrete Output TypePNP/NPN
Nominal Sensing Distance25.4 mm
Maximum Differential Travel0.7 mm
Transmission Frequency500 kHz
Repeat Accuracy0.7 %
Operating Temperature-30...70 °C
Relative Humidity100 % without condensation
Shock Resistance30 gn 11 ms in all 3 axes IEC 60068-2-27
Resistance to Fast Transients1 kV level 3 IEC 61000-4-4
Width12 mm
Depth12 mm
ISO ThreadM12 x 1
Wiring Technique4-wire
Sensor TypeUltrasonic sensor
Type of Output SignalDiscrete
MaterialPlastic
Front MaterialGlass epoxy
ComplianceCE
IP Degree of ProtectionIP67
Series NameSuperprox 300
