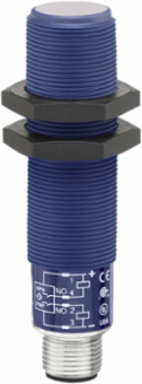

Telemecanique Sensors SC650AB00RF Hyde Park, Ultrasonic sensor, discrete, 18 mm barrel, 12 24 V DC

MPN: SC650AB00RF
PPN: TES-SC650AB00RF
UNSPSC: 39122230

$809.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Hyde Park, Ultrasonic sensor, discrete, 18 mm barrel, 12 24 V DC

Documentation & Downloads

Specifications

Key Specifications

Iso Thread	M18 x 1
Series Name	Superprox +
Range Of Product	Hyde Park
Product Specific Application	discrete proximity
Electrical Connection	male connector M12 4 pins
Enclosure Material	ULTEM
Material	plastic
[Us] Rated Supply Voltage	12...24 V DC overload and short-circuit protection

Type Of Sensing Window	configurable
Type Of Output Signal	discrete
Supply Voltage Limits	10-28 V DC
Sensor Type	ultrasonic sensor
Sensor Design	cylindrical M18
Front Material	silicone rubber
Device Short Name	SC650
Wiring Technique	4-wire

Complementary

Repeat Accuracy	0.07 %
Height	18 mm
Maximum Switching Current	100 mA reverse polarity protection
Width	18 mm
[Sn] Nominal Sensing Distance	254-254 mm
Length	73.91 mm
Current Consumption	60 mA

Beam Angle	7 °
Minimum Size Of Detected Object	cylinder diameter 1.59 mm - up to 76.2 mm sensing distance
Transmission Frequency	500 kHz
Depth	18 mm
Blind Zone	19-19 mm
Net Weight	0.033 kg
Maximum Differential Travel	0.35 mm

Environment

Product Certifications	UL
Resistance To Electromagnetic Fields	10 V/m level 3 IEC 61000-4-3
Relative Humidity	100-100 % without condensation
Vibration Resistance	+/-1 mm 10-55 Hz)IEC 60068-2-6
Marking	CE
Ip Degree Of Protection	IP67

Ambient Air Temperature For Operation	0-60 °C
Ambient Air Temperature For Storage	-40-100 °C
Nema Degree Of Protection	NEMA 4X indoor use only)
Shock Resistance	30 gn in all 3 axes 11 ms IEC 60068-2-27
Resistance To Fast Transients	1 kV level 3 IEC 61000-4-4
