Hubbell Wiring Device-Kellems 02203037 Support Grips Offset Eye Tin-Coated Bronze 0.50-0.62 Inch
- MPN: 02203037
- UPC: 783585303208
- PPN: HBL-02203037
- UNSPSC: 39121719
CAD
$114.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

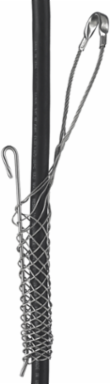

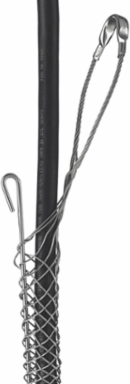

Support Grips, Offset Eye, Single Weave, Split Mesh, Rod Closing, Tin-Coated Bronze, 0.50-0.62"
Features
- Offset eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Rod Closing
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Cable Diameter Range
- 0.5 in-0.62 in
- Industry Standard(s)
- CSA Certified
- Standards - RoHS Compliance Status
- CM
- Cable Size
- .50"-.62" (1.27-1.57)
- Standard
- CSA Certified
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- General Literature Asset 3 Display Text
- FOOD & BEVERAGE SOLUTIONS
- Class Code
- A52
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A52A480
- Construction
- Woven
- Series
- Standard Duty Series
- BOX SIZE
- 12.875x24.625x16.505 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585303208
- Each - Pack Description
- Each
- NAICS Code
- 3359323114
Approx Breaking Strength500 lb.
Width2.000 in
PerformanceMechanical - Approximate Breaking Strength - 500 (2,224);Mechanical - Working Load - 50 (222.4) Lbs. (N)
ApplicationOffset Eye
Special FeaturesSplit Mesh- Rod Closing
TypeOffset Eye
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
StyleSplit Mesh, Rod Closing
Description - InvoiceOFF EYE, SUP GRIP, .50-.62"; GALV, ROD
Harmonization Code7419805050
MSDS FlagNo
Material - Mounting HardwareScrew Hook or Beam Clamp
MaterialBronze, Tin Coated
Base Unit of MeasureEA
Carton - Gross Weight per Pack10.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units200 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
