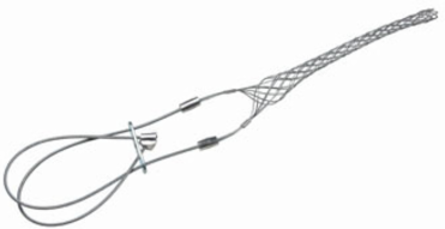

Pass & Seymour FC52LB Flexcor Support Grips, Locking Bale, 0.53-0.73 Inch Cable Diameter, 15 Inch Bale Length
Pass & Seymour FC52LB Flexcor Support Grips, Locking Bale, 0.53-0.73 Inch Cable Diameter, 15 Inch Bale Length
- MPN: FC52LB
- UPC: 785007998832
- PPN: P-S-FC52LB
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$62.84/ EA
Description
FC52LB: Bus Drop, Closed Mesh, Locking Bale, Cable Diameter 0.53 - 0.73 inches, Bale Length 15-in, Mesh Length 6.5-in, Break Strength 1100 lbs.
Features
- Bus drop grips are used as cable support. They relieve any direct tension from the critical connection and absorb vibration and flexing.
- Bus drop grips are woven of galvanized steel wire.
- They are offered with either the single eye or locking bale attachment.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 15: Mesh Length: 6.5
Specifications
Specifications
- Country of Origin
- Mexico
- Type
- Support Grip
- Indoor/Outdoor
- Both
- Special Features
- Bus drop grips are used as cable support. They relieve any direct tension from the critical connection and absorb vibration and flexing. Bus drop grips are woven of galvanized steel wire. They are offered with either the single eye or locking bale attachment.
- Minimum Cable Range
- 0.73 in
- Cable Diameter Range
- 0.530-0.730 in
- Capacity
- Various Cable Diameter Ranges
- Mounting
- Consult the Factory for Mounting Recommendations
Product LinePass & Seymour
Mesh Length6.5 in
Eye StyleLocking Bale
Maximum Cable Range0.53 in
Application SectorIndustrial
Approximate Break Strength1100.0 lb
StandardUL/CSA Approval (consult factory)
ConstructionSupport and Strain Relief Grips, Various Types of Pulling
