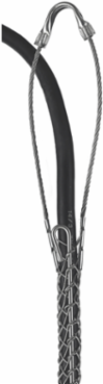

Hubbell Wiring Device-Kellems 02203022 Support Grips, Single Eye, Split Mesh, Tin-Coated Bronze, 2.50-2.99"
- MPN: 02203022
- UPC: 783585303123
- PPN: HBL-02203022
- UNSPSC: 39121719
CAD
$334.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Support Grips, Single Eye, Single Weave, Split Mesh, Rod Closing, Tin-Coated Bronze, 2.50-2.99"
Features
- Single eye
- Strand equalizers position wires for equal loading throughout grip length
- Eye assemblies provide eye reinforcement at support hardware
- Split Mesh- Rod Closing
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Country of Origin
- Mexico
- Cable Diameter Range
- 2.5 in-2.99 in
- Industry Standard(s)
- CSA Certified
- Application
- Single Eye
- Special Features
- Split Mesh- Rod Closing
- Type
- Single Eye
- Style
- Split Mesh, Rod Closing
- Description - Invoice
- SGL EYE, SUP GRIP, 2.5-3.0", GALV, ROD
- Harmonization Code
- 7419809999
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Hook or Beam Clamp
- Material
- Bronze, Tin Coated
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 15.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Approx Breaking Strength3,260 lb.
Width5.000 in
PerformanceMechanical - Approximate Breaking Strength - 3,260 (14,500);Mechanical - Working Load - 326 (1450) Lbs. (N)
Cable Size2.50"-2.99" (6.35-7.59)
StandardCSA Certified
General Literature Asset 1 Display TextWire Management Solutions Brochure
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesStandard Duty Series
BOX SIZE5.900x38.300x16.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585303123
Each - Pack DescriptionEach
NAICS Code3359323114
