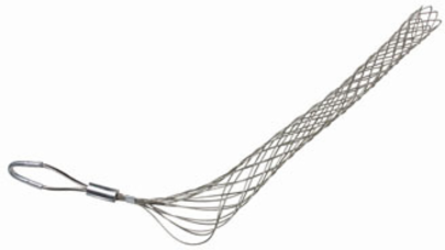

Pass & Seymour FC200OF Flexcor Support Grip, Standard Duty, Cable Diameter 2.00-2.49 Inch, Break Strength 3760 lbs
Pass & Seymour FC200OF Flexcor Support Grip, Standard Duty, Cable Diameter 2.00-2.49 Inch, Break Strength 3760 lbs
- MPN: FC200OF
- UPC: 785007980400
- PPN: P-S-FC200OF
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$119.61/ EA
Description
FC200OF: Standard Duty, Closed Mesh, Offset Eye Grips, Cable Diameter 2.00 - 2.49 inches, Bale Length 6-in, Mesh Length 22-in, Break Strength 3760 lbs.
Features
- Closed mesh support grips are used when the end of the cable is accessible.
- Standard duty closed mesh support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 6: Mesh Length: 22
Specifications
Specifications
- Country of Origin
- Mexico
- Product Line
- Pass & Seymour
- Mesh Type
- Closed
- Indoor/Outdoor
- Both
- Maximum Cable Range
- 2.0 in
- Application Sector
- Industrial
- Approximate Break Strength
- 3230.0 lb
- Standard
- UL/CSA Approval (consult factory)
- Construction
- Support and Strain Relief Grips, Various Types of Pulling
Special FeaturesStandard closed mesh support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Closed mesh support grips are used when the end of the cable is accessible. Support grips are woven of corrosion-resistant tinned-bronze wire.
Eye StyleOffset
TypeSupport Grip
Mesh Length22.0 in
Minimum Cable Range2.49 in
Cable Diameter Range2.00-2.49 in
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
