Pass & Seymour

Pass & Seymour FC250LB Flexcor® Standard Duty Closed Mesh Support Grips, Cable Diameter 2.50-2.99 Inch, 18 Inch Bale

Flexcor® Standard Duty Closed Mesh Support Grips, Cable Diameter 2.50-2.99 Inch, 18 Inch Bale
  • MPN: FC250LB
  • UPC: 785007980080
  • PPN: P-S-FC250LB

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$190.16/ EA

Description

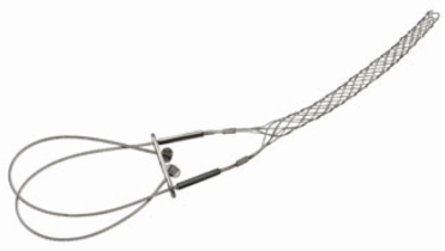

FC250LB: Standard Duty, Closed Mesh, Locking Bale (Universal Eye), Cable Diameter 2.50 - 2.99 inches, Bale Length 18-in, Mesh Length 24-in, Break Strength 3360 lbs.

Features

  • Closed mesh support grips are used when the end of the cable is accessible.
  • Standard duty closed mesh support grips are designed for loads up to 600 lbs.
  • Vertical runs of no more than 100 ft.
  • They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
  • Support grips are woven of corrosion-resistant tinned-stainless steel wire.
  • Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
  • Bale Length: 18: Mesh Length: 24

Specifications

Specifications

Country of Origin
Mexico
Product Line
Pass & Seymour
Type
Support Grip
Mesh Length
23.0 in
Maximum Cable Range
2.5 in
Application Sector
Industrial
Approximate Break Strength
3260.0 lb
Standard
UL/CSA Approval (consult factory)
Construction
Support and Strain Relief Grips, Various Types of Pulling
Special FeaturesStandard closed mesh support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Closed mesh support grips are used when the end of the cable is accessible. Support grips are woven of corrosion-resistant tinned-bronze wire.
Mesh TypeClosed
Indoor/OutdoorBoth
Eye StyleLocking Bale
Minimum Cable Range2.99 in
Cable Diameter Range2.50-2.99 in
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
