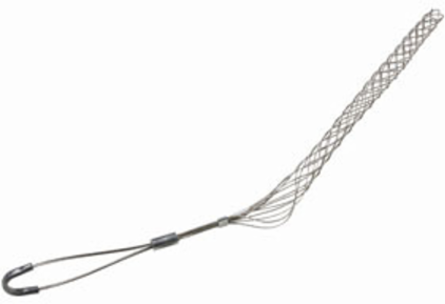

Pass & Seymour FC050OF Flexcor® Standard Duty Closed Mesh Support Grips, Cable Diameter 0.50-0.61 Inch, Bale Length 4 Inch, Break Strength 770 lbs
Pass & Seymour FC050OF Flexcor® Standard Duty Closed Mesh Support Grips, Cable Diameter 0.50-0.61 Inch, Bale Length 4 Inch, Break Strength 770 lbs
- MPN: FC050OF
- UPC: 785007980332
- PPN: P-S-FC050OF
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$46.87/ EA
Description
Flexcor® Standard Duty Closed Mesh Support Grips, Cable Diameter 0.50-0.61 Inch, Bale Length 4 Inch, Break Strength 770 lbs
Features
- Closed mesh support grips are used when the end of the cable is accessible.
- Standard duty closed mesh support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 4: Mesh Length: 11
Specifications
Specifications
- Length
- 10.0 in
- Width
- 0.62 in
- Eye Style
- Offset
- Type
- Support Grip
- Mesh Length
- 10.0 in
- Minimum Cable Range
- 0.61 in
- Approximate Break Strength
- 512.0 lb
- Capacity
- Various Cable Diameter Ranges
- Mounting
- Consult the Factory for Mounting Recommendations
- Product Line
- Pass & Seymour
Special FeaturesStandard closed mesh support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Closed mesh support grips are used when the end of the cable is accessible. Support grips are woven of corrosion-resistant tinned-bronze wire.
Country of OriginMexico
Mesh TypeClosed
Indoor/OutdoorBoth
Maximum Cable Range0.5 in
Application SectorIndustrial
Cable Diameter Range0.500-0.620 in
StandardUL/CSA Approval (consult factory)
ConstructionVarious Types of Pulling, Support and Strain Relief Grips
