Pass & Seymour

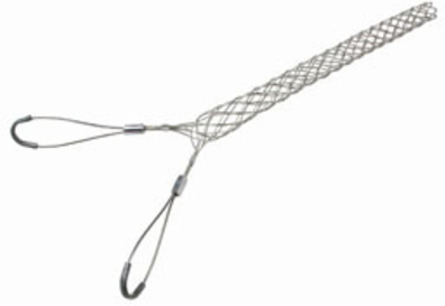

Pass & Seymour FC100UU Flexcor® Standard Duty Closed Mesh Double-Eye Grip, Cable 1.00-1.24 Inch, 600 lbs Load

Flexcor® Standard Duty Closed Mesh Double-Eye Grip, Cable 1.00-1.24 Inch, 600 lbs Load
  • MPN: FC100UU
  • UPC: 785007981025
  • PPN: P-S-FC100UU

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$54.11/ EA

Description

FC100UU: Standard Duty, Closed Mesh, Double -Eye Grip, Cable Diameter 1.00 - 1.24 inches, Bale Length 5-in, Mesh Length 15-in, Break Strength 1920 lbs.

Features

  • Closed mesh support grips are used when the end of the cable is accessible.
  • Standard duty closed mesh support grips are designed for loads up to 600 lbs.
  • Vertical runs of no more than 100 ft.
  • They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
  • Support grips are woven of corrosion-resistant tinned-stainless steel wire.
  • Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
  • Bale Length: 5: Mesh Length: 15

Specifications

Specifications

Country of Origin
Mexico
Product Line
Pass & Seymour
Mesh Type
Closed
Indoor/Outdoor
Both
Maximum Cable Range
1.0 in
Application Sector
Industrial
Approximate Break Strength
1540.0 lb
Standard
UL/CSA Approval (consult factory)
Construction
Various Types of Pulling, Support and Strain Relief Grips
Special FeaturesStandard closed mesh support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Closed mesh support grips are used when the end of the cable is accessible. Support grips are woven of corrosion-resistant tinned-bronze wire.
Eye StyleDouble
TypeSupport Grip
Mesh Length15.0 in
Minimum Cable Range1.24 in
Cable Diameter Range1.00-1.24 in
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
