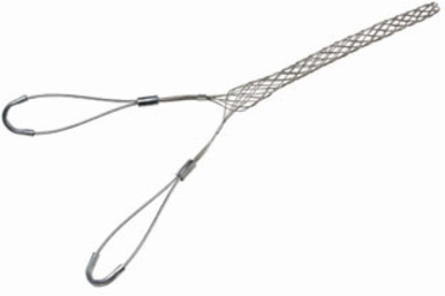

Pass & Seymour FC062UU Flexcor® Support Grip Closed Mesh, Cable Diameter 0.62-0.74 Inch, Bale 4 Inch, Break Strength 1150 lbs
- MPN: FC062UU
- UPC: 785007981001
- PPN: P-S-FC062UU
CAD
$71.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Flexcor® Support Grip Closed Mesh, Cable Diameter 0.62-0.74 Inch, Bale 4 Inch, Break Strength 1150 lbs
Features
- Closed mesh support grips are used when the end of the cable is accessible.
- Standard duty closed mesh support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 4: Mesh Length: 11
Documentation & Downloads
Specifications
Key Specifications
- Length
- 9.7 in
- Width
- 0.74 in
- Product Line
- Pass & Seymour
- Mesh Type
- Closed
- Mesh Length
- 9.7 in
- Maximum Cable Range
- 0.62 in
- Application Sector
- Industrial
- Cable Diameter Range
- 0.630-0.740 in
- Standard
- UL/CSA Approval (consult factory)
- Construction
- Various Types of Pulling, Support and Strain Relief Grips
Special FeaturesStandard closed mesh support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Closed mesh support grips are used when the end of the cable is accessible. Support grips are woven of corrosion-resistant tinned-bronze wire.
Country of OriginMexico
Eye StyleDouble
TypeSupport Grip
Indoor/OutdoorBoth
Minimum Cable Range0.74 in
Approximate Break Strength740.0 lb
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
