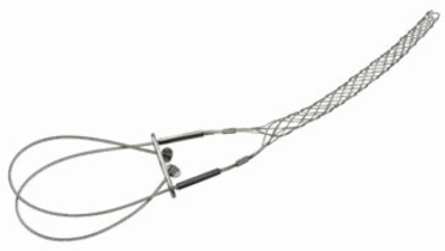

Pass & Seymour FC075LB Flexcor® Standard Duty Support Grip, 0.75-0.99 Inch Cable Diameter, 1320 lbs Break Strength
Pass & Seymour FC075LB Flexcor® Standard Duty Support Grip, 0.75-0.99 Inch Cable Diameter, 1320 lbs Break Strength
- MPN: FC075LB
- UPC: 785007980028
- PPN: P-S-FC075LB
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$75.67/ EA
Description
FC075LB: Standard Duty, Closed Mesh, Locking Bale (Universal Eye), Cable Diameter 0.75 - 0.99 inches, Bale Length 18-in, Mesh Length 14-in, Break Strength 1320 lbs.
Features
- Closed mesh support grips are used when the end of the cable is accessible.
- Standard duty closed mesh support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 18: Mesh Length: 14
Specifications
Specifications
- Country of Origin
- Mexico
- Product Line
- Pass & Seymour
- Type
- Support Grip
- Mesh Length
- 13.0 in
- Maximum Cable Range
- 0.75 in
- Application Sector
- Industrial
- Approximate Break Strength
- 1020.0 lb
- Standard
- UL/CSA Approval (consult factory)
- Construction
- Support and Strain Relief Grips, Various Types of Pulling
Special FeaturesStandard closed mesh support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Closed mesh support grips are used when the end of the cable is accessible. Support grips are woven of corrosion-resistant tinned-bronze wire.
Mesh TypeClosed
Indoor/OutdoorBoth
Eye StyleLocking Bale
Minimum Cable Range0.99 in
Cable Diameter Range0.740-0.990 in
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
