Pass & Seymour FS100LB Flexcor Support Grips 1-1/4 Inch Cable, Bale Length 18 Inch, Break Strength 1920 lbs.
- MPN: FS100LB
- UPC: 785007983548
- PPN: P-S-FS100LB
CAD
$102.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

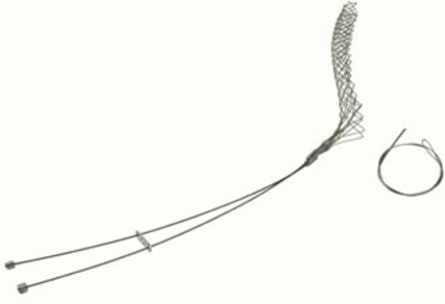

Flexcor Support Grips 1-1/4 Inch Cable, Bale Length 18 Inch, Break Strength 1920 lbs.
Features
- Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation.
- Split lace support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 18: Mesh Length: 15
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Type
- Support Grip
- Mesh Length
- 14.0 in
- Eye Style
- Locking Bale
- Minimum Cable Range
- 1.24 in
- Cable Diameter Range
- 1.00-1.24 in
- Capacity
- Various Cable Diameter Ranges
- Mounting
- Consult the Factory for Mounting Recommendations
- Product Line
- Pass & Seymour
Special FeaturesSplit lace support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation. Support grips are woven of corrosion-resistant tinned-bronze wire.
Indoor/OutdoorBoth
Mesh TypeSplit Lace
Maximum Cable Range1.0 in
Application SectorIndustrial
Approximate Break Strength1610.0 lb
StandardUL/CSA Approval (consult factory)
ConstructionVarious Types of Pulling, Support and Strain Relief Grips
