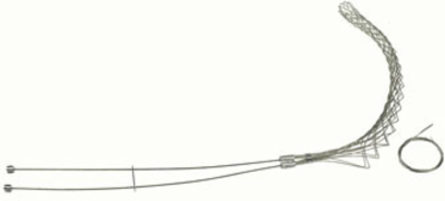

Pass & Seymour FS175LB Flexcor Support Grips 1.75-1.99 Inch Cable, 18 Inch Bale, 3150 lbs Break Strength
Pass & Seymour FS175LB Flexcor Support Grips 1.75-1.99 Inch Cable, 18 Inch Bale, 3150 lbs Break Strength
- MPN: FS175LB
- UPC: 785007983579
- PPN: P-S-FS175LB
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$148.23/ EA
Description
FS175LB: Standard Duty, Split Lace, Locking Bale (Universal Eye), Cable Diameter 1.75 - 1.99 inches, Bale Length 18-in, Mesh Length 20-in, Break Strength 3150 lbs.
Features
- Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation.
- Split lace support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 18: Mesh Length: 20
Specifications
Specifications
- Country of Origin
- Mexico
- Type
- Support Grip
- Mesh Length
- 18.0 in
- Eye Style
- Locking Bale
- Minimum Cable Range
- 1.99 in
- Cable Diameter Range
- 1.75-1.99 in
- Capacity
- Various Cable Diameter Ranges
- Mounting
- Consult the Factory for Mounting Recommendations
- Product Line
- Pass & Seymour
Special FeaturesSplit lace support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation. Support grips are woven of corrosion-resistant tinned-bronze wire.
Indoor/OutdoorBoth
Mesh TypeSplit Lace
Maximum Cable Range1.75 in
Application SectorIndustrial
Approximate Break Strength2150.0 lb
StandardUL/CSA Approval (consult factory)
ConstructionVarious Types of Pulling, Support and Strain Relief Grips
