Pass & Seymour FS200LB Flexcor Support Grip, Standard Duty, 2.00-2.49 Inch Cable Diameter, 3360 lbs Break Strength
Pass & Seymour FS200LB Flexcor Support Grip, Standard Duty, 2.00-2.49 Inch Cable Diameter, 3360 lbs Break Strength
- MPN: FS200LB
- UPC: 785007983586
- PPN: P-S-FS200LB
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$174.51/ EA
Description

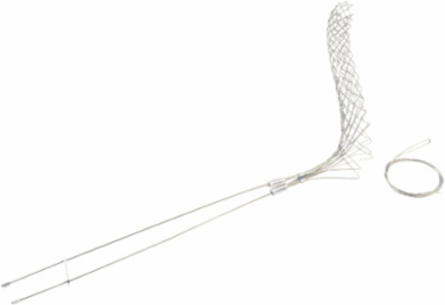

FS200LB: Standard Duty, Split Lace, Locking Bale (Universal Eye), Cable Diameter 2.00 - 2.49 inches, Bale Length 18-in, Mesh Length 22-in, Break Strength 3360 lbs.
Features
- Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation.
- Split lace support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 18: Mesh Length: 22
Specifications
Specifications
- Country of Origin
- Mexico
- Special Features
- Split lace support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Split lace support grips are used when the end of the cable cannot easily be accessed and the support grip is intended for permanent installation. Support grips are woven of corrosion-resistant tinned-bronze wire.
- Indoor/Outdoor
- Both
- Mesh Type
- Split Lace
- Maximum Cable Range
- 2.0 in
- Application Sector
- Industrial
- Approximate Break Strength
- 3260.0 lb
- Standard
- UL/CSA Approval (consult factory)
- Construction
- Various Types of Pulling, Support and Strain Relief Grips
Product LinePass & Seymour
TypeSupport Grip
Mesh Length18.0 in
Eye StyleLocking Bale
Minimum Cable Range2.49 in
Cable Diameter Range2.00-2.49 in
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
