Pass & Seymour FR100LB Flexcor Support Grip, Split Rod, Locking Bale, 1.00-1.24 Inch Cable Diameter, 14 Inch Bale Length
- MPN: FR100LB
- UPC: 785007982220
- PPN: P-S-FR100LB
CAD
$132.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

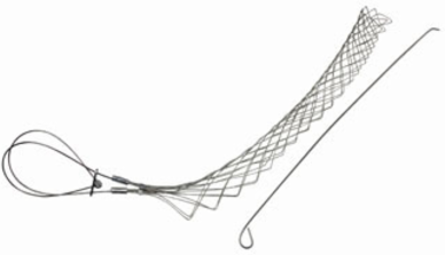

Flexcor Support Grip, Split Rod, Locking Bale, 1.00-1.24 Inch Cable Diameter, 14 Inch Bale Length
Features
- Split rod support grips are used when the end of the cable cannot be easily accessed and the installation is temporary.
- Split rod support grips are designed for loads up to 600 lbs.
- Vertical runs of no more than 100 ft.
- They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
- Support grips are woven of corrosion-resistant tinned-stainless steel wire.
- Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
- Bale Length: 14: Mesh Length: 13
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Product Line
- Pass & Seymour
- Indoor/Outdoor
- Both
- Mesh Type
- Split Rod
- Maximum Cable Range
- 1.0 in
- Application Sector
- Industrial
- Approximate Break Strength
- 1610.0 lb
- Standard
- UL/CSA Approval (consult factory)
- Construction
- Various Types of Pulling, Support and Strain Relief Grips
Special FeaturesSplit rod support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Split rod support grips are used when the end of the cable cannot be easily accessed and the installation is temporary. Support grips are woven of corrosion-resistant tinned-bronze wire.
TypeSupport Grip
Mesh Length12.5 in
Eye StyleLocking Bale
Minimum Cable Range1.24 in
Cable Diameter Range1.00-1.24 in
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
