Pass & Seymour

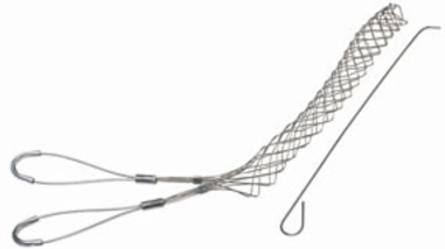

Pass & Seymour FR175UU Flexcor Support Grips, Standard Duty, 1.75-1.99 Inch Diameter, 6 Inch Bale, 20 Inch Mesh

Flexcor Support Grips, Standard Duty, 1.75-1.99 Inch Diameter, 6 Inch Bale, 20 Inch Mesh
  • MPN: FR175UU
  • UPC: 785007983241
  • PPN: P-S-FR175UU

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$170.70/ EA

Description

FR175UU: Standard Duty, Split Rod, Double-Eye, Cable Diameter 1.75 - 1.99 inches, Bale Length 6-in, Mesh Length 20-in, Break Strength 2640 lbs.

Features

  • Split rod support grips are used when the end of the cable cannot be easily accessed and the installation is temporary.
  • Split rod support grips are designed for loads up to 600 lbs.
  • Vertical runs of no more than 100 ft.
  • They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
  • Support grips are woven of corrosion-resistant tinned-stainless steel wire.
  • Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
  • Bale Length: 6: Mesh Length: 20

Specifications

Specifications

Country of Origin
Mexico
Product Line
Pass & Seymour
Type
Support Grip
Mesh Length
16.5 in
Maximum Cable Range
1.75 in
Application Sector
Industrial
Approximate Break Strength
2150.0 lb
Standard
UL/CSA Approval (consult factory)
Construction
Support and Strain Relief Grips, Various Types of Pulling
Special FeaturesSplit rod support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Split rod support grips are used when the end of the cable cannot be easily accessed and the installation is temporary. Support grips are woven of corrosion-resistant tinned-bronze wire.
Eye StyleDouble
Indoor/OutdoorBoth
Mesh TypeSplit Rod
Minimum Cable Range1.99 in
Cable Diameter Range1.75-1.99 in
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
