Pass & Seymour

Pass & Seymour FR200U Flexcor Support Grip, Standard Duty, Cable Diameter 2.00-2.49 Inch, Bale 16 Inch

Flexcor Support Grip, Standard Duty, Cable Diameter 2.00-2.49 Inch, Bale 16 Inch
  • MPN: FR200U
  • UPC: 785007982923
  • PPN: P-S-FR200U

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$164.20/ EA

Description

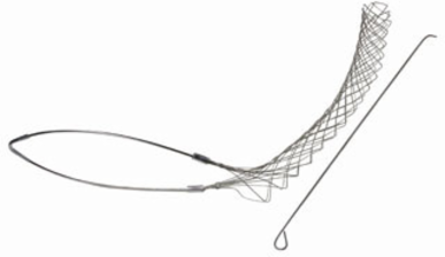

FR200U: Standard Duty, Split Rod, Single Eye, Cable Diameter 2.00 - 2.49 inches, Bale Length 16-in, Mesh Length 22-in, Break Strength 3760 lbs.

Features

  • Split rod support grips are used when the end of the cable cannot be easily accessed and the installation is temporary.
  • Split rod support grips are designed for loads up to 600 lbs.
  • Vertical runs of no more than 100 ft.
  • They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing.
  • Support grips are woven of corrosion-resistant tinned-stainless steel wire.
  • Most Flexcor products have UL and/or CSA approvals. Please contact factory for approval information.
  • Bale Length: 16: Mesh Length: 22

Specifications

Specifications

Country of Origin
Mexico
Special Features
Split rod support grips are designed for loads up to 600 lbs. and vertical runs of no more than 100 ft. They are available in a variety of eye styles and cable ranges for supporting electrical and fiber optic cable, metal rods, and tubing. Split rod support grips are used when the end of the cable cannot be easily accessed and the installation is temporary. Support grips are woven of corrosion-resistant tinned-bronze wire.
Type
Support Grip
Mesh Length
21.0 in
Maximum Cable Range
2.0 in
Application Sector
Industrial
Approximate Break Strength
3400.0 lb
Standard
UL/CSA Approval (consult factory)
Construction
Various Types of Pulling, Support and Strain Relief Grips
Product LinePass & Seymour
Eye StyleSingle
Indoor/OutdoorBoth
Mesh TypeSplit Rod
Minimum Cable Range2.49 in
Cable Diameter Range2.00-2.49 in
CapacityVarious Cable Diameter Ranges
MountingConsult the Factory for Mounting Recommendations
