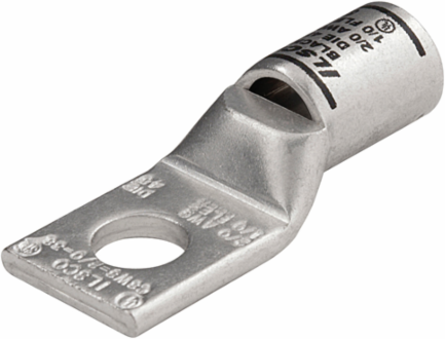

Ilsco CSWS-2/0-38 Surecrimp Copper Compression Lug, Conductor Size 2/0, 1 Hole, 3/8in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
Ilsco CSWS-2/0-38 Surecrimp Copper Compression Lug, Conductor Size 2/0, 1 Hole, 3/8in Bolt Size, Standard Barrel, Sight Window, Tin Plated, UL, CSA
- MPN: CSWS-2/0-38
- UPC: 0783669637052
- PPN: ILC-CSWS-2/0-38
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$15.29/ EA
Specifications
Voltage
- Voltage Rating
- 35 kV
Dimensions
- Barrel Length (IN)
- 0.85
- Dimension G (IN)
- 0.414
- Height BX (IN)
- 2.25
- Inside Diameter (IN)
- 0.437
- Length (mm)
- 53.8734
- Mounting Hole Diameter (IN)
- 0.406
- Mounting Hole Spacing (mm)
- 0
- Outside Diameter (mm)
- 14.2748
- Tang Length (IN)
- 0.875
- Tang Thickness (IN)
- 0.125
- Tang Width (IN)
- 0.811
- Weight BX (LB)
- 1.486
- Width (mm)
- 20.5994
Barrel Length (mm)21.59
Dimension G (mm)10.5156
Height (mm)15.1638
Inside Diameter (mm)11.0998
Mounting Bolt/Stud Size (mm)965.2
Mounting Hole Diameter (mm)10.3124
Outside Diameter (IN)0.562
Strip Length (mm)20.6248
Tang Length (mm)22.225
Tang Thickness (mm)3.175
Tang Width (mm)20.5994
Width BX (IN)5
Testing Standards
- CSA File Number
- LR-29601
- NEBS Rating
- Level 3
- UL Control Number
- 453G
- UL File Number
- E6207
CSA StandardC22.2 No. 65-03
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL / CULUS SpecificationUL 467 Listed, UL 486A/B Listed
Additional Class Attributes
- Barrel Marking
- Ink
- Connecting Angle
- 180°
- Contains DE-OX®
- No
- ILSCOs Die Catalog Number
- ILD-45
- Mounting Hole Type
- Thru
- Number of Mounting Holes
- 1
- Slotted
- No
- Undrilled
- No
Barrel TypeStandard
ConnectionCompression
Flared EndNo
ILSCOs Die Index NumberI-45
Narrow TangNo
Sight WindowYes
Tang End ShapeSquare
Material and Finish
- Conductor Material
- Copper
- Material
- Copper
Connector FinishTin
Conductor Ranges
- Conductor Range CU Stranded (Primary, run, main, line)
- 2/0 Str
- Flex Conductor Range
- 1/0 G,H,I,K,M,DLO
Expanded Conductor Range2/0 Str - 4 Str
Additional Technical Specifications
- Conductor Type
- Stranded, Flex
General
- Bag Quantity
- 1
- Direct Burial
- Yes
- NEMA Code
- S-588-3
Carton Quantity DescriptionSTD PACK QTY 10
Dual RatedNo
UPC Code78366963705
Specifications
- Height
- 0.597 in | 15.1638 mm
- Weight
- 0.0604460920218473 lbs
Length2.121 in | 53.8734 mm
Width0.811 in | 20.5994 mm
Bolt and Screw Sizes
- Mounting Bolt/Stud Size
- 3/8
Color
- Color
- Silver
Color CodeBlack
Environment and Temperature
- Temperature Rating
- 90°C
