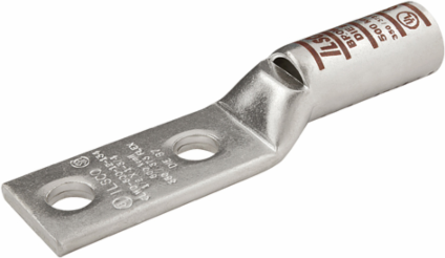

ILSCO CLWD-350-12-134 Surecrimp Copper Compression Lug, Conductor Size 350, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, Sight Window, Tin Plated, UL, CSA
- MPN: CLWD-350-12-134
- UPC: 783669643916
- PPN: ILC-CLWD-350-12-134
CAD
$63.78
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Surecrimp Copper Compression Lug, Conductor Size 350, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, Sight Window, Tin Plated, UL, CSA
Documentation & Downloads
Specifications
Key Specifications
| Height | 0.93 in | 23.622 mm |
|---|---|
| Weight | 0.389446574778466 lbs |
| Length | 5.623 in | 142.8242 mm |
|---|---|
| Width | 1.291 in | 32.7914 mm |
Voltage
| Voltage Rating | 35 kV |
|---|
Dimensions
| Barrel Length (IN) | 2 |
|---|---|
| Dimension G (IN) | 0.546 |
| Height BX (IN) | 2 |
| Inside Diameter (IN) | 0.703 |
| Length (mm) | 142.8242 |
| Mounting Hole Diameter (IN) | 0.562 |
| Mounting Hole Spacing (IN) | 1.75 |
| Outside Diameter (IN) | 0.89 |
| Strip Length (mm) | 52.3748 |
| Tang Length (mm) | 76.2 |
| Tang Thickness (mm) | 4.7498 |
| Tang Width (mm) | 32.7914 |
| Width BX (IN) | 6.1875 |
| Barrel Length (mm) | 50.8 |
|---|---|
| Dimension G (mm) | 13.8684 |
| Height (mm) | 23.622 |
| Inside Diameter (mm) | 17.8562 |
| Mounting Bolt/Stud Size (mm) | 304.8 |
| Mounting Hole Diameter (mm) | 14.2748 |
| Mounting Hole Spacing (mm) | 44.45 |
| Outside Diameter (mm) | 22.606 |
| Tang Length (IN) | 3 |
| Tang Thickness (IN) | 0.187 |
| Tang Width (IN) | 1.291 |
| Weight BX (LB) | 4.2341 |
| Width (mm) | 32.7914 |
Testing Standards
| CSA File Number | LR-29601 |
|---|---|
| NEBS Rating | Level 3 |
| ROHS Indicator | IND |
| UL / CULUS Specification | UL 486A/B Listed, UL 467 Listed |
| CSA Standard | C22.2 No. 65-03 |
|---|---|
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| UL Control Number | 453G |
| UL File Number | E6207 |
Additional Class Attributes
| Barrel Marking | Ink |
|---|---|
| Connecting Angle | 180° |
| Contains DE-OX® | No |
| ILSCOs Die Catalog Number | ILD-71 |
| Mounting Hole Type | Thru |
| Number of Mounting Holes | 2 |
| Slotted | No |
| Undrilled | No |
| Barrel Type | Long |
|---|---|
| Connection | Compression |
| Flared End | No |
| ILSCOs Die Index Number | I-71 |
| Narrow Tang | No |
| Sight Window | Yes |
| Tang End Shape | Square |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Material | Copper |
| Connector Finish | Tin |
|---|
Conductor Ranges
| Conductor Range CU Stranded (Primary, run, main, line) | 350 kcmil |
|---|---|
| Flex Conductor Range | 250 I,K,M 262.2 DLO |
| Expanded Conductor Range | 350 kcmil - 3/0 Str |
|---|
Additional Technical Specifications
| Conductor Type | Flex, Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | Yes |
| NEMA Code | S-588-3 |
| Carton Quantity Description | STD PACK QTY 10 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366964391 |
Bolt and Screw Sizes
| Mounting Bolt/Stud Size | 1/2 |
|---|
Color
| Color | Silver |
|---|
| Color Code | Red |
|---|
Environment and Temperature
| Temperature Rating | 90°C |
|---|
