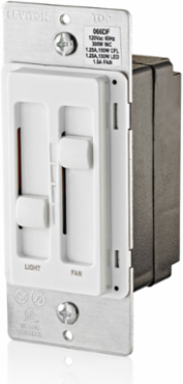

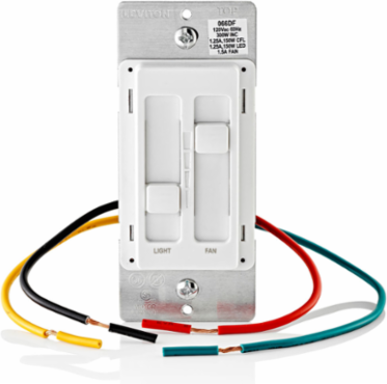

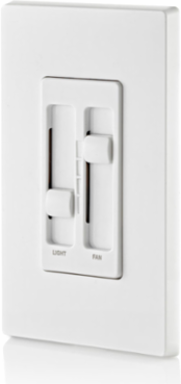

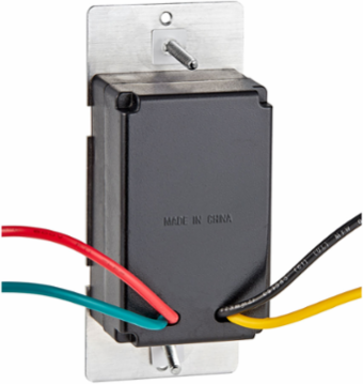

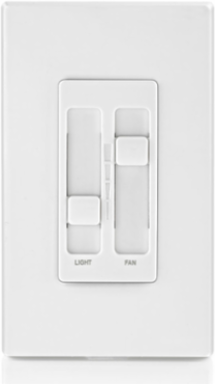

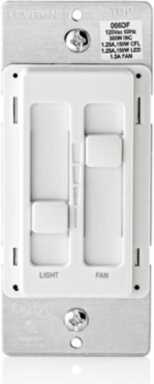

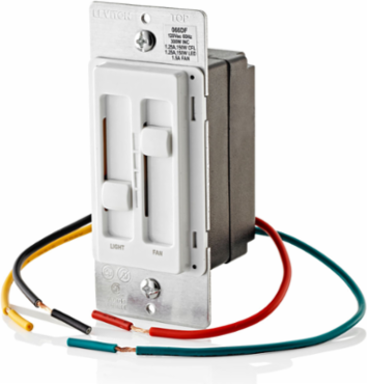

Leviton 66DF-10W SureSlide Ceiling Fan Control and Dimmer Switch for LED, Halogen and Incandescent Bulbs
Leviton 66DF-10W SureSlide Ceiling Fan Control and Dimmer Switch for LED, Halogen and Incandescent Bulbs
- MPN: 66DF-10W
- UPC: 078477645604
- PPN: LEV-66DF-10W
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$89.84/ EA
Description
150W-120VAC dimmable LED and CFL, 300W-120VAC incandescent, 1.5A fan control, single pole. Wallplate sold separately - White
Features
- Integrated linear full-range slide controls for easy, precise operation
- Separate controls for fan speed and light level selection
- Single pole dimmer designed for use with dimmable LED/CFL, Incandescent and Halogen lamps
- Adjustment dial to modify the minimum light level in order to maximize the dimming range if flickering occurs at lower dimming levels
- Special circuitry reduces fan motor noise at low speeds
- Selection of low, medium or high fan speeds
- Slim, compact housing fits easily into a standard wallbox and is suitable for multi-gang installations
- Built-in radio/TV interference filter
- Compatible with Decora wallplates and Decora Plus screwless wallplates (sold separately)
- CONVENIENT – Designed to work with ceiling fans with lights. Separate slide controls for fan speed and dimmer
- INNOVATIVE – Single pole dimmer designed specifically to dim LED bulbs. Also works with incandescent, halogen and CFL bulbs
- ADVANCED - Adjustment switch to modify the minimum light level in order to maximize the dimming range if flickering occurs at lower dimming levels
- UNIQUE - Special circuitry reduces fan motor noise at low speed. Choice of low, medium or high fan speeds
Specifications
Product Features
- Action
- Slide-to-OFF
- Brand
- SureSlide
- Color
- White
- Load Rating
- 1.5A FAN, 300W INC, 150W LED/CFL
- Ordering Notes
- White
- Protection
- Radio/TV Filter
- Style Name
- SureSlide
- Type
- Electro-Mechanical
- Wallplate
- Order Separately
Available ColorsIvroy-I, White-W, Light Almond-T
California Title 24Yes
Frequency60 Hz
Load TypeFan, Incandescent, Dimmable LED, Dimmable CFL
PresetNon-Preset
Standards and CertificationscCSAus
Switch TypeSingle-Pole
Voltage120 VAC
Warranty5-Year Limited
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
