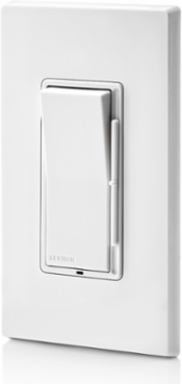

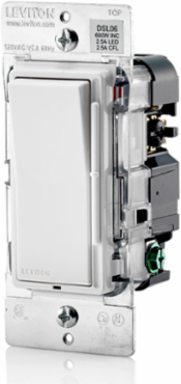

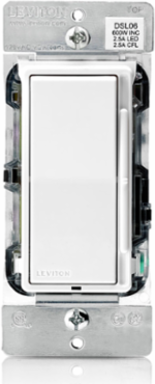

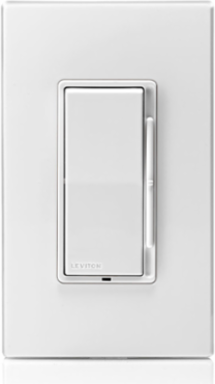

Leviton DSL06-1LZ Decora Slide Dimmer Switch 600W Incandescent, 300W LED, Single-Pole & 3-Way
- MPN: DSL06-1LZ
- UPC: 078477692325
- PPN: LEV-DSL06-1LZ
CAD
$35.02
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Decora Slide Dimmer. 600W-120VAC incandescent, and 300W-120VAC dimmable LED and CFL, 60Hz., single pole or 3-way control when used with 3-way switch, wallplate sold separately. Can be used to comply with 2016 California Title 24, Part 6, Indoor Lighting Switching Devices and Controls - White, Ivory & Light Almond
Features
- New aesthetically pleasing design with rocker switch and slender dimmer control slide bar
- Integrated linear full-range slide control for easy, precise operation
- Controls a variety of dimmable LED and CFL lamps
- Compatible with Incandescent and Halogen lamps

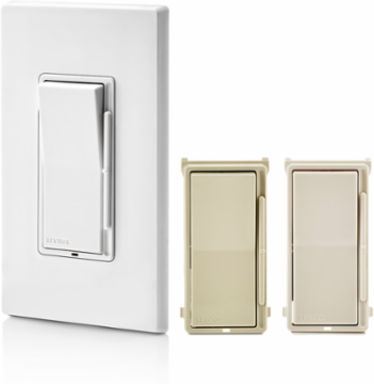

- Single pole or 3-way operation (when using 3-way switch); packaged with White, Ivory, and Light Almond color change kits
- Additional color change kits available in Black, Brown, Red and Gray
- Slim, compact housing fits easily into a standard wallbox and is suitable for multi-gang installations with other Decora products
- The slide bar location preserves the selected brightness level when the dimmer is switched OFF
- Microprocessor control offers flexibility to program LEDs and CFLs for best performance
- Switch under the color change kit to turn locator light ON/OFF
- No fins for multi-gang installation
- Screw terminals with back wire capability for easier installation, a Neutral wire is not required for operation
- Built-in radio/TV interference filter
- INNOVATIVE – Designed to dim LED bulbs. For the best bulb pairings, refer to the “find a bulb” button below
- FLEXIBLE – Can be used in a single-pole or 3-way installation (with a 3-way switch, sold separately). No neutral wire required for installation
- CONVENIENT – Separate ON/OFF rocker switch allows you to set and keep preferred dimming level
- ADVANCED – Adjustment switch to modify the minimum light level in order to maximize the dimming range if flickering occurs at lower dimming levels
Documentation & Downloads
Specifications
Product Features
- Warranty
- 5-Year Limited
- Color
- White, Ivory, Light Almond
- Standards and Certifications
- cCSAus, NOM
- Load Type
- Incandescent, Dimmable LED, Dimmable CFL
- Preset
- Slide bar preserves desired lighting level
- Voltage
- 120 VAC
- Action
- Rocker Switch for ON/OFF, slide bar for lighting level control
- Protection
- Radio/TV Filter
- Style Name
- Decora
Ordering NotesIncluded White, Ivory and Light Almond Color Kit
LightLocator light that can be turned off
Country Of OriginChina
Load Rating600W Incandescent, 300W LED and CFL
Frequency60 Hz
Available ColorsIvry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red
WallplateOrder Separately
TypeDimmer
Switch TypeSingle-Pole & 3-Way
