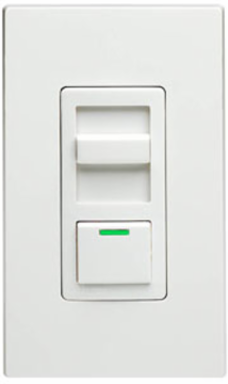

Leviton IPE04-1LZ IllumaTech Dimmer Switch, 400VA ELV, 400W Incandescent, 150W LED/CFL
- MPN: IPE04-1LZ
- UPC: 078477282083
- PPN: LEV-IPE04-1LZ
CAD
$179.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora IllumaTech ELV/LED/CFL Slide Dimmer, 120VAC, 60Hz, 400VA Electronic Low Voltage, 150-Watt dimmable LED/CFL, 400-Watt Incandescent/Halogen, single pole or 3-way control when used with 3-way switch, LED locator, neutral wire required – White, Ivory & Light Almond
Features
- Designed for control of Electronic Low Voltage, LED, CFL, Incandescent and Halogen loads
- Neutral wire required for installation
- Provides single pole or 3-way lighting control when used with a 3-way switch
- Fluid slide movement allows fine adjustment of light level with minimal effort
- Adjustment switch to modify the minimum light level to help eliminate low end flicker for a smoother dimming experience
- Captive wraparound slide bar remains securely attached
- Easy to use push button switch with green LED locator light
- LED locator light illuminates when load is off (select models)
- Push button switch acts as an air gap switch completely disconnecting power from unit for bulb changing
- Slide controls travel approximately 20mm
- Power failure recovery ensures retention of last setting before power interruption
- Built-in radio/TV interference filter
- Attractive styling coordinates perfectly with Leviton’s complete line of Decora wiring devices
- Compatible with Decora Plus™ screwless and Decora standard designer wallplates
- Fit easily into a standard wallbox and are suitable for multi-gang installations
- Comes packaged in White with Ivory and Light Almond color faceplates. Additional color change faceplates available
- EXCEPTIONAL – Superior quality and dimming performance
- ADVANCED – Adjustment switch to modify the minimum light level to help eliminate low end flicker for a smoother dimming experience
- FLEXIBLE – Can be used in a single-pole or 3-way installation (with a 3-way switch, sold separately).
- CONVENIENT – Separate on/off switch allows you to set and keep preferred dimming level
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Product Features
| Action | Standard ON/OFF |
|---|---|
| Color | White, Ivory, Light Almond |
| Frequency | 60 Hz |
| Load Rating | 400VA ELV, 400W Incandescent, 150W LED and CFL |
| Ordering Notes | Incl White, Ivory and Light Almond Color Kit |
| Protection | Radio/TV Filter |
| Style Name | IllumaTech |
| Type | Slide |
| Wallplate | Order Separately |
| Available Color Kits | Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T Red-R |
|---|---|
| Color Change Kit | IPKIT-00 Series |
| Light | LED Locator |
| Load Type | Electronic Low Voltage, Incandescent, Dimmable LED, Dimmable CFL |
| Preset | Preset |
| Standards and Certifications | UL/CSA |
| Switch Type | Single-Pole & 3-Way |
| Voltage | 120 VAC |
| Warranty | 5-Year Limited |
