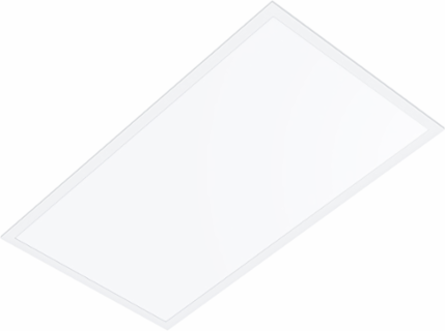

RAB 032499 Panel LED CPL24-LED45A30 45A30W 120-347V Variable Temp Dimmable
- MPN: 032499
- UPC: 061184324993
- PPN: RAB-032499
CAD
$98.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The newest back-lit models in our CPL-LED Panel family are both Lumen selectable and Colour Temperature selectable. These highly-efficient LED Panels provide uniform distribution, superior performance, and reduced glare.
Features
- Lumen Adjustable and Colour Selectable (3500K, 4000K, 5000K)
- Backlit ceiling panels with aluminum frame and PMMA lens (acrylic lens).
- 0-10V Dimming comes standard
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 49 Inches |
| Lumens | 5625 |
| Efficacy | 125 |
| THD | 0.122 |
| CRI | >80 |
| Lens | PMMA Lens Acrylic |
| CCT | VK |
| Dimmable | Yes |
| Width | 25 Inches |
|---|---|
| Depth | 1.8 Inches |
| Watts | 45 |
| Operating Temperature | -40C to +40C |
| PF | > 0.9 |
| Surge Protection | 4kV, 2kV (For 347V) |
| Materials | Aluminum |
| Voltage | 120-347V |
