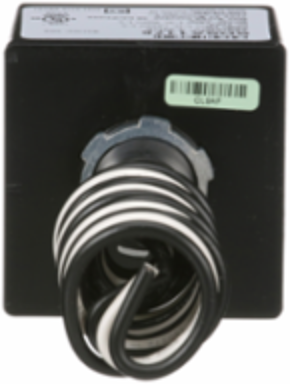

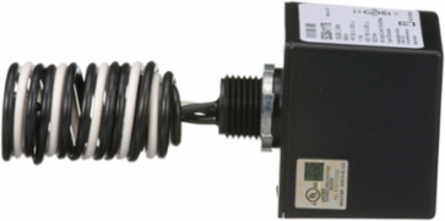

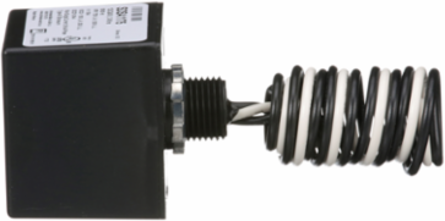

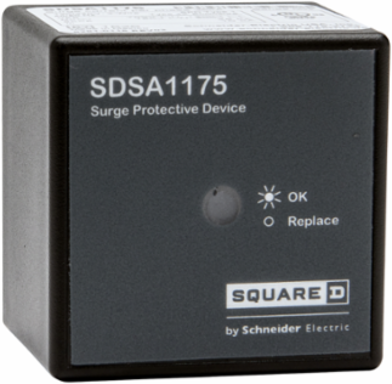

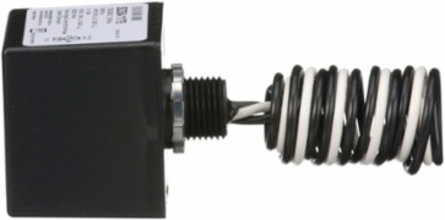

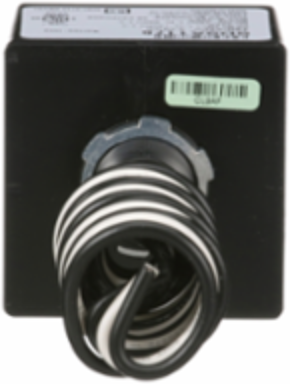

Square D SDSA1175 Surge Protector 36 kA, 120/240V AC, 1 Phase, NEMA 4X
- MPN: SDSA1175
- UPC: 785901210870
- PPN: SCH-SDSA1175
CAD
$98.11
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

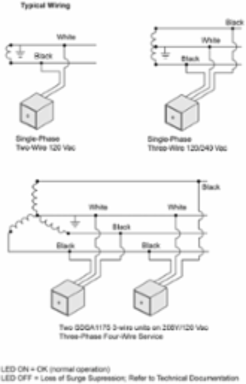

Surgelogic™ Type SDSA is used mostly in service entrance panels to provide an efficient and economical means of surge suppression. This device can be used indoors or outdoors to provide surge suppression for 1 PH, 3 wire, 120/240 VAC or 2 wire, 120 VAC systems. SPD are single phase and are rated for use in an indoor or outdoor enclosure. Ideal for residential and light commercial use, these SPDs provide a dependable first layer of surge protection. It is designed to protect electrical service and major household appliances, excluding electronic devices. Designed for 3 wire 120/240 VAC single phase systems. Securing up to 36kA surge current per phase. This surge protection device is UL Listed.
Features
- Engineered and certified as a UL 1449 Type 1 Surge Protective Device (SPD), this Square D by Schneider Electric unit offers the ultimate installation flexibility to be connected on either the line or load side of your main overcurrent protection device. This allows electricians to mount it directly inside a meter socket, main service entrance panel, or subpanel without requiring a dedicated upstream circuit breaker.
- This Surgelogic device delivers a robust surge current capacity of 36 kA per phase and a nominal discharge current of 10 kA.
- Housed in a rugged, non-metallic black plastic enclosure with an elite NEMA 4X weather-proof rating, this component is fully protected against windblown dust, rain, splashing water, and corrosion.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Indonesia, Mexico, United States, ZZ

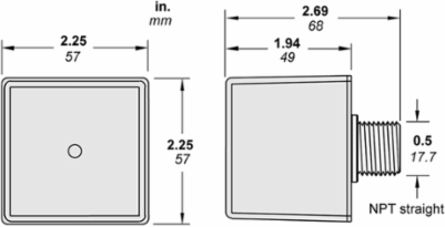

Depth2.7 in
Physical Attributes
- Cable Length
- 24 in
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Certificate Agency
- UL 1449:ed. 4: type I, NEC 285, CSA C22.2 No 8
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.7 kg CO2 eq., 0.7329642923577202
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.476559566761104
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2510004EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2531
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Nominal Discharge Current
- 10 kA
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Surgelogic
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 239 kg CO2 eq.
- Pep Code
- ENVPEP2510004EN
- Pep Verification Date
- 2025-10-27
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 9
- Width Nominal
- 2.25 in
- [Ue] Rated Operational Voltage
- 120/240 V AC
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536308000
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The Distribution Phase [A4]0.1580267586158608, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.004058897894106709, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]236 kg CO2 eq., 235.6685386818315
Local Publishable Date2026-07-16
Stocking FlagN
Device TypeSurge Protection and Power Conditioning - Surge Protection Devices
TraceabilityYes
Average Life Duration10 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Enclosure MaterialBlack Plastic
Local Signallingstatus LED green normal operation
Phase1 phase
Product Or Component Typesurge protection device
ReturnabilityYes
Sustainable PackagingNo
Wiring Configuration3-wire
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect, against direct and indirect effects of lightning or against transient overvoltages, electronic equipment connected to networks with a rated operational voltage of up to 1000 V AC or 1500 V DC, via a surge arrester of type T, with Np poles, according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh525.6
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal2.25 in
[Uc] Maximum Continuous Operating Voltage150 V
Short-circuit Protection25 kA
Package Weight(Lbs)319.782 g
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 239.0401481974603
- Circularity Profile
- ENVEOLI2510004EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-10-27
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation65-65 °C
Environmental DisclosureENVPEP2510004EN
Nema Degree Of ProtectionNEMA 4X
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2510004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- Surgelogic
Product Or Component Typesurge protection device
Surge Protection And Filtering Attributes
- Surge Current
- 36 kA per phase
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
