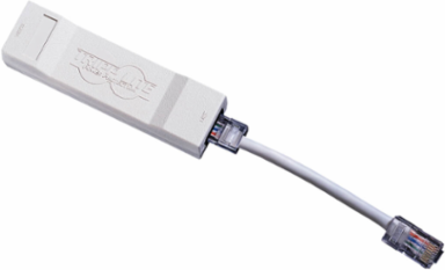

Tripp Lite DNET1 DataShield In-Line Surge Protector for Network and Phone Lines, 1-Line RJ45
Tripp Lite DNET1 DataShield In-Line Surge Protector for Network and Phone Lines, 1-Line RJ45
- MPN: DNET1
- UPC: 037332011435
- PPN: TRP-DNET1
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$50.39/ EA
Description
Protects network datalines on workstations, printers, hubs and other devices from blown NIC cards, garbled transmissions, lock-ups and hardware failures caused by surges, line noise, ESD, faulty wiring and lightning.
Features
- Network Ethernet line surge suppression for 100Base-T, 10Base-T, Token Ring, AS400/Sys3x and RS422 applications
- Ideal protection for NICs, terminals, hubs, printers, LAN equipment, and other internetworking devices
- Protects against the effects of electrostatic discharge, faulty wiring and lightning
- Reduces blown NIC cards, garbled network transmissions, system lock-ups and hard equipment failure
- 750A circuit breaker; 7.5V nominal clamping voltage
- RJ45 input and output connections with included patch cable
- This product is covered by a Lifetime Limited Warranty ( coverage details )
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 0
- Automatic Shut-Off
- No
Clamping Voltage (RMS)7.5
Dataline Surge Suppression
- Telephone/DSL Protection
- Yes
- Cable (Coax) Protection
- No
- Additional Dataline Protection
- 1-8
Telephone/DSL Protection Details1 line
Network (Ethernet) ProtectionYes
Physical
- Anti-Microbial Protected
- No
- Integrated Keyhole Mounting Slots
- No
- Shipping Weight (lbs.)
- 0.23
ColorLight Gray
Shipping Dimensions (hwd / in.)6.00 x 3.00 x 2.00
User Interface, Alerts & Controls
- Diagnostic LED(s)
- No
Input
- Nominal Input Voltage(s) Supported
- 120V AC; 230V AC
- Input Plug Type
- RJ45
- Right-Angle Plug
- No
Recommended Electrical Service120V, 230V
Input Cord Length (ft.)0
Integrated Cord ClipNo
Output
- Output Receptacles
- (1) Network
- Right-Angle Outlets
- No
Circuit Breaker (amps)750
Overview
- UPC Code
- 037332011435
Special Features
- Rotatable Outlets
- No
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
