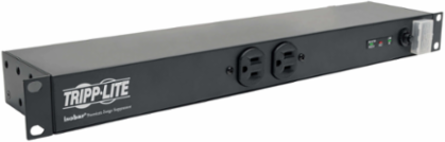

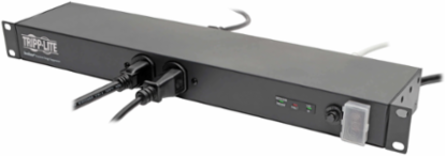

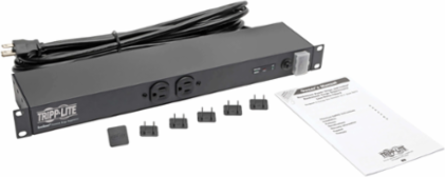

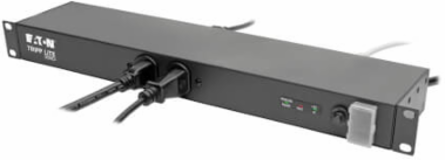

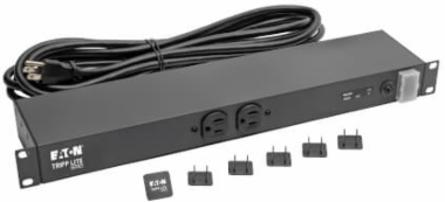

Tripp Lite ISOBAR12ULTRA Isobar 12-Outlet Surge Protector, 15 ft. Cord, 3840 Joules, Diagnostic LEDs, 1U Rack-Mount
Tripp Lite ISOBAR12ULTRA Isobar 12-Outlet Surge Protector, 15 ft. Cord, 3840 Joules, Diagnostic LEDs, 1U Rack-Mount
- MPN: ISOBAR12ULTRA
- UPC: 037332011039
- PPN: TRP-ISOBAR12ULTRA
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$356.28/ EA
Description
Rack-mount protection for A/V components, network hardware, retail displays, appliances, power tools and other expensive electronics against dangerous surges, spikes and line noise in home, office and industrial environments.
Features
- 12 NEMA 5-15R outlets in exclusive isolated filter banks
- Network-grade 3840-joule surge protection rating
- Durable metal housing designed for tough environments
- 15A resettable circuit breaker prevents dangerous overloads
- 15 ft. AC power cord with NEMA 5-15P plug
- This product is covered by a Lifetime Limited Warranty ( coverage details )
- $25,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- AC Suppression Joule Rating
- 3840
- Protection Modes
- Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
- AC Suppression Surge Current Rating
- 96,000 amps
- Safe Thermal Fusing
- Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences
- EMI / RFI Filtering
- 40-80 dB
- Immunity
- Conforms to IEE 587 / ANSI C62.41
AC Suppression Response TimeNM = 0 ns. CM = <1 ns
Clamping Voltage (RMS)140
AC Suppression Components UsedMetal oxide varistors, toroidal balanced chokes and VHF capacitors
UL1449 Let Through Rating330V
Isolated Filter Banks2
Automatic Shut-OffNo
Certifications
- UL1449 3rd Edition (AC Suppression)
- Tested to UL1449 3rd Edition by ETL
- Approvals
- Exceeds IEEE 587 category A&B specifications
CanadaApproved for Canada by ETL
Dataline Surge Suppression
- Telephone/DSL Protection
- No
- Network (Ethernet) Protection
- No
Cable (Coax) ProtectionNo
Physical
- Anti-Microbial Protected
- No
- Color (AC Line Cord)
- Black
- Housing Color
- Black
- Integrated Keyhole Mounting Slots
- Yes (Includes flanges)
- Outlets Measurement (Center to Center)
- Distance between front outlets = 38.9mm; Distance between rear outlets = 38.9mm
- Shipping Dimensions (hwd / in.)
- 9.30 x 2.60 x 20.40
- Unit Dimensions (hwd / in.)
- 1.75 x 17.5 x 4
ColorBlack

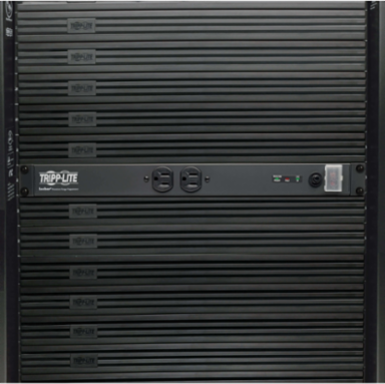

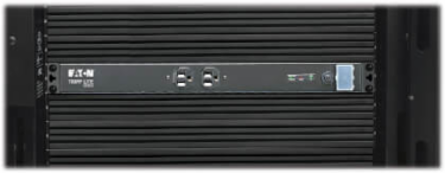

Form Factors Supported1U rackmount, 0U vertical rackmount, wallmount and under-counter mounting supported - detachable flanges can be re-configured to support a variety of additional mounting options
Included Mounting AccessoriesIncluded mounting flanges are pre-installed for 1U rackmount installation and can be re-configured to support a variety of mounting options
Material of ConstructionMetal
Receptacle ColorBlack
Shipping Weight (lbs.)6.00
Unit Weight (lbs.)4.6
User Interface, Alerts & Controls
- Diagnostic LED(s)
- Yes
- Diagnostic LED Details
- PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)
SwitchesRed illuminated power switch controls power to all outlets
Locking Switch CoverTransparent locking switch cover prevents accidental shutoff
Input
- Nominal Input Voltage(s) Supported
- 120V AC
- Voltage Compatibility (VAC)
- 120

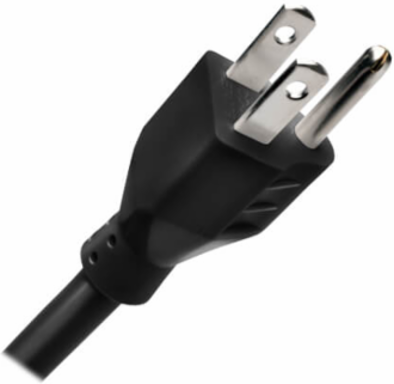

- Input Plug Type
- NEMA 5-15P
- Right-Angle Plug
- No
Recommended Electrical Service120V (110-125V)
Maximum Surge Amps150000
Input Cord Length (ft.)15
Integrated Cord ClipNo
Output
- Frequency Compatibility
- 50 / 60 Hz
- Output Receptacles
- (12) 5-15R
- Right-Angle Outlets
- No
Output (Watts)1800
Circuit Breaker (amps)15
Overview
- UPC Code
- 037332011039
Special Features
- Rotatable Outlets
- No
Warranty
- Product Warranty Period (Worldwide)
- Lifetime limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$25,000 Ultimate Lifetime Insurance
