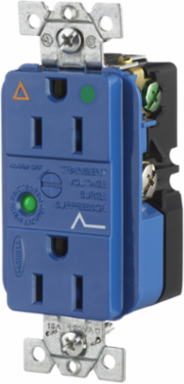

Hubbell Wiring Device-Kellems IG8262SA SPIKESHIELD Hospital Grade Surge Suppression Receptacle, 15A 125V, Isolated Ground, Blue
Hubbell Wiring Device-Kellems IG8262SA SPIKESHIELD Hospital Grade Surge Suppression Receptacle, 15A 125V, Isolated Ground, Blue
- MPN: IG8262SA
- UPC: 783585060910
- PPN: HBL-IG8262SA
- UNSPSC: 39121610
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$267.42/ EA
Description
Surge Protective Devices, SPIKESHIELD Hospital Grade Surge Suppression Receptacle, Isolated Ground, 15A 125V, 5-15R, Blue
Features
- High-impact nylon face resists breakage
- Automatic grounding clip attached to bridge
- Power-on indicator light verifies instantly that power is available
- Distinctive surge symbol for visual identification of surge suppression receptacle
- Isolated Ground
Specifications
Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 15 A
- Industry Standard(s)
- CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498 Receptacles;UL Listed File E2186
- Amperage Rating
- 15 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Isolated Ground
- Type
- Duplex
- Voltage Rating Description
- 125 V
- General Literature Asset 1 Display Text
- Duct Products Guide
- Connectivity
- Terminal Screws
- Nema Rating
- 5-15R
- Class Code
- A44
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- IG8200HS;IG8262S
- Material - Mounting Hardware
- Mounting Screws
- Indicator(s) Type
- LED and Audible Alarm
- Series
- Hospital Grade
- BOX SIZE
- 4.300x11.100x4.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585060910
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
ColorBlue
Width2.200 in
PerformanceElectrical - Frequency - 60Hz;Electrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs) Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
ApplicationDecorator Duplex with Light and Alarm
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
StandardCSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498 Receptacles;UL Listed File E2186
Voltage Rating125 V
Engineering Drawing 1 Display TextIG8262SA AutoCAD Drawing
General Literature Asset 2 Display TextSpikeShield® Surge Protective Devices
Display SizeStandard
StyleIsolated Ground
Description - InvoiceDUP SPD RCPT, IG, HG,15A 125V, 5-15R,BL
Harmonization Code8537109170
MSDS FlagNo
Sub Class CodeA44A420
Current Rating15 A
MaterialComposite
Base Unit of MeasureEA
Carton - Gross Weight per Pack4 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight62.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
Downloads
