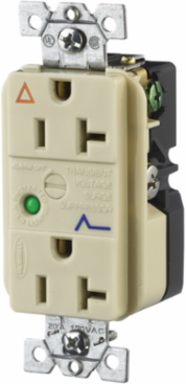

Hubbell Wiring Device-Kellems IG5362ISA Surge Protective Duplex Receptacle 20A 125V 5-20R Ivory
- MPN: IG5362ISA
- UPC: 783585060736
- PPN: HBL-IG5362ISA
- UNSPSC: 39121610
CAD
$289.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Surge Protective Devices, SPIKESHIELD IG TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, Ivory
Features
- Automatic self-grounding staple
- Distinctive surge symbol provides quick identification
- Power-on indicator light verifies that power is available
- Alert alarm sounds when surge protection is no longer functioning
- Isolated Ground
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- IG5362ISA AutoCAD Drawing
- Country of Origin
- China
- Current / Amperage Rating
- 20 A
- Industry Standard(s)
- CSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
- Amperage Rating
- 20 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Isolated Ground
- Type
- Duplex
- Voltage Rating Description
- 125 V
- Display Size
- Standard
- Style
- Isolated Ground
- Description - Invoice
- DUP SPD RCPT, IG, 20A 125V, 5-20R, IV
- Harmonization Code
- 8536309999
- MSDS Flag
- No
- Sub Class Code
- A44A420
- Current Rating
- 20 A
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.1 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 17.500 lb.
- Lowest Level UOM
- Each
General Literature Asset 1 Display TextSpikeShield® Surge Protective Devices
ColorIvory
Width2.200 in
PerformanceElectrical - Protection Modes - Normal and Common Modes;Electrical - Response Time - Approximately 5 ns;Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs);Electrical - Voltage - 120V AC + 10% - 15%;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
ApplicationDecorator Duplex with Light and Alarm
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
StandardCSA Certified to Specification C22.2 No. 42;Listed to UL Standards 498;UL Listed File E2186
Voltage Rating125 V
ConnectivityTerminal Screws
Nema Rating5-20R
Class CodeA44
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberIG5352IS
Material - Mounting HardwareMounting Screws
Indicator(s) TypeLED and Audible Alarm
SeriesSpecification Grade
BOX SIZE4.000x11.000x4.700 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585060736
Case - Total Units50 EA
Each - Pack DescriptionEach
NAICS Code335999E509
Certifications
- EU RoHS Indicator
- No
