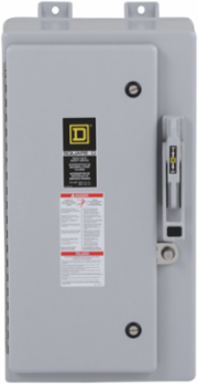

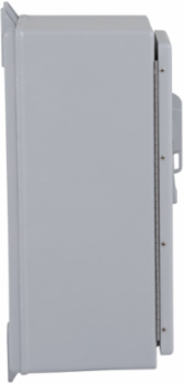

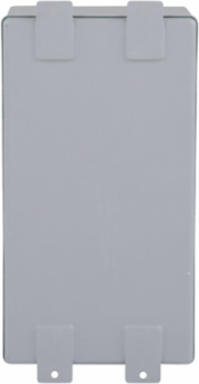

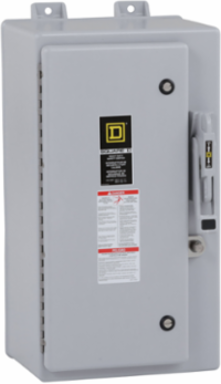

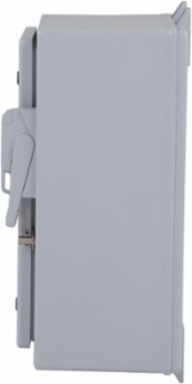

Square D H363DF Heavy Duty Safety Switch 100A 3P NEMA 4X Fiberglass 24.78 Inch Height
- MPN: H363DF
- UPC: 785901627869
- PPN: SCH-H363DF
- UNSPSC: 39122205
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This heavy duty Single Throw Safety Switch has a rated current of 100A and has a NEMA 4X degree of protection. This fusible disconnect has a short circuit rating of 200kA@600VAC. This safety switch has a fiberglass reinforced polyester enclosure and is surface mounted. This product os compatable with H or K, R, J or L fuses. The acceptable AWG gauge for this product is AWG 12 / AWG 1/0, aluminiumand has a tightening torque of 50-50 lbf.in. T his product complys to UL listed file E2875 standards and comes with an 18 month warranty. Dimensions for this product are 24.78 in (H), 13.7 in (W), 12 in (D).
Features
- Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
- Designed to satisfy individual requirements for all customers
- Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
- All feature a quick-make, quick-break operating mechanism, a dual cover
- Designed to have a mechanical endurance three times greater than NEMA standards
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|---|
| Depth | 12 in |
| Weight | 20412 g |
|---|
Complementary Attributes
| Line Rated Current | 100 A |
|---|
| Ue Rated Operational Voltage | 600 V AC/DC |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Fuse Type | H or K, R or J |
| Tightening Torque | 50-50 lbf.in (1 AWG...3/0 AWG)45-45 lbf.in (6 AWG...4 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The Distribution Phase A4 | 6.073084809105589, 6 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 2.1352545413971193, 2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 30 kg CO2 eq., 30.347997770169158 |
| Local Publishable Date | 2025-11-13 |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1904 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 12 AWG...1/0 AWG aluminium14 AWG...1/0 AWG copper |
| Device Composition | none |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Sustainable Packaging | No |
| Wiring Configuration | 3-wire |
| Data Source | extrapolated product |
| Width Nominal | 13.7 in |
| Customs Code | 8536509045 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Motor Power Hp | 25 hp at 480 V AC 50-60 Hz for 3 phase motors, 60 hp at 480 V AC 50-60 Hz for 3 phase motors30 hp at 600 V AC 50-60 Hz for 3 phase motors, 75 hp at 600 V AC 50-60 Hz for 3 phase motors50 hp at 600 V DC |
| Certificate Agency | UL listed file E2875, CSA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 47 kg CO2 eq., 46.95195354978193 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 111 kg CO2 eq., 111.3482839091294 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 197 kg CO2 eq. |
| Database Version | 2022-01 |
| Height Nominal | 24.78 in |
| Nbr. Of Units In Pkg. | 1 |
| Short Circuit Current | 10 kA for H or K200 kA for R or J |
| Functional Unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 89 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 196.8565745795832 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2305006EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305006EN |
| Nema Degree Of Protection | NEMA 4X fiberglass reinforced polyester |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-06-06 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
