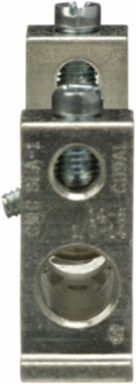

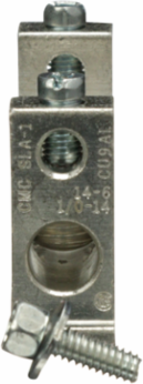

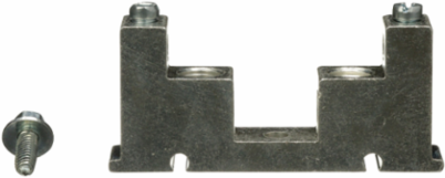

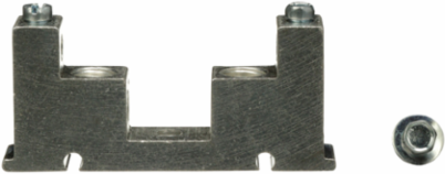

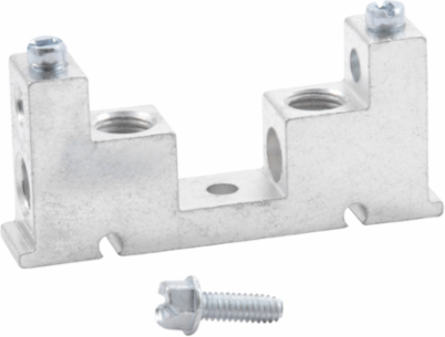

Square D GTK0610 Safety switch accessory, heavy duty, equipment grounding kit, F5-F6 600V, 60A

Safety switch accessory, heavy duty, equipment grounding kit, F5-F6 600V, 60A
Safety switch accessory, heavy duty, equipment grounding kit, F5-F6 600V, 60A
Safety switch accessory, heavy duty, equipment grounding kit, F5-F6 600V, 60A
Safety switch accessory, heavy duty, equipment grounding kit, F5-F6 600V, 60A
Safety switch accessory, heavy duty, equipment grounding kit, F5-F6 600V, 60A
  • MPN: GTK0610
  • UPC: 785901751380
  • PPN: SCH-GTK0610

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$22.98/ EA

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Square D heavy duty safety switch grounding bar comes in 30A and 60A. This grounding bar accepts AWG gauges of AWG 12 (CU), AWG 10 (AL), and AWG 4 (AL/CU). This product comes with an 18 month warranty. This heavy duty safety switch grounding bar by Square D has a rated current of 60A and 100A and is rated ofr an AWG gauge of AWG 2, copper or aluminium

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1304031
Eu Rohs Directive
Compliant with Exemptions
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold

Specifications

Series Name
heavy duty
Product Or Component Type
safety switch grounding bar
Range Of ProductSquare D

Complementary

Height
1.405 in
[In] Rated Current
60 A F1 || 60 A F3 || 60 A F5 || 60 A F7 || 100 A F2 || 100 A F7
Width
3.180 in
Tightening Torque20-20 lbf.in AWG 14...AWG 10) || 25-25 lbf.in AWG 8) || 35-35 lbf.in AWG 6...AWG 4) || 50-50 lbf.in AWG 3...AWG 1/0)
Awg GaugeAWG 2 copper or aluminum
Depth.625 in
