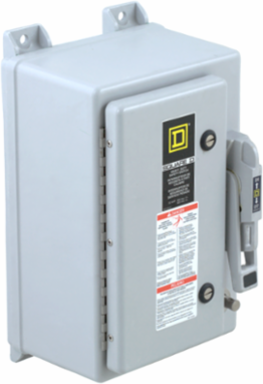

Square D H362DF Heavy Duty Fusible Safety Switch 60A 3-Pole NEMA 4X, 16.5 Inch Height
- MPN: H362DF
- UPC: 785901627852
- PPN: SCH-H362DF
- UNSPSC: 39122205
CAD
$4785.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs. This is a three pole fusible heavy duty safety switch that is rated at 30A with voltage of 600 VAC and 600 VDC. It is rated when using time delay fuses of 15 HP at 480 VAC single phase, 20 HP at 600 VAC three phase and 15 HP at 250 VDC. This switch has a 4 wire configuration and is rated for 12 to 2 AWG aluminum wire and 14 to 2 AWG copper wire. This device has enclosure rating of NEMA 12K. It has a height of 16.5 in, width of 10.5 in and has a depth of 6.37 in. This switch uses a appleton powertite receptacle. It is UL listed with the file E2875.
Features
- Heavy duty fusible 60A, 600VAC/DC safety switch
- Type 4X fiberglass reinforced polyester for water and corrosion resistance
- Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
- Quick make, quick break operating mechanism
- Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
- UL listed
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 8.8 in |
| Weight | 9652 g |
|---|
Complementary Attributes
| Line Rated Current | 60 A |
|---|
| Ue Rated Operational Voltage | 600 V AC/DC |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Fuse Type | H or K, R or J |
| Tightening Torque | 50-50 lbf.in (3 AWG)45-45 lbf.in (6 AWG...4 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG)50-50 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG) |
| Carbon Footprint Of The Distribution Phase A4 | 2.8717134321716222, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 1.0096745460300312, 1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 13 kg CO2 eq., 12.992332388513393 |
| Local Publishable Date | 2025-11-13 |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1904 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 14 AWG...3 AWG copper12 AWG...3 AWG aluminium |
| Device Composition | none |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Sustainable Packaging | No |
| Wiring Configuration | 3-wire |
| Data Source | extrapolated product |
| Width Nominal | 11 in |
| Customs Code | 8536509045 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Motor Power Hp | 15 hp at 480 V AC 50-60 Hz for 3 phase motors, 30 hp at 480 V AC 50-60 Hz for 3 phase motors, 15 hp at 600 V AC 50-60 Hz for 3 phase motors, 50 hp at 600 V AC 50-60 Hz for 3 phase motors, 30 hp at 600 V DC |
| Certificate Agency | UL listed file E2875, CSA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 22 kg CO2 eq., 22.201658615642522 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 53 kg CO2 eq., 52.65204959293146 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | heavy application |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 92 kg CO2 eq. |
| Database Version | 2022-01 |
| Height Nominal | 16.5 in |
| Nbr. Of Units In Pkg. | 1 |
| Short Circuit Current | 10 kA for H or K200 kA for R or J |
| Functional Unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 89 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 91.72742857528903 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2305006EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305006EN |
| Nema Degree Of Protection | NEMA 4X fiberglass reinforced polyester |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-06-06 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
