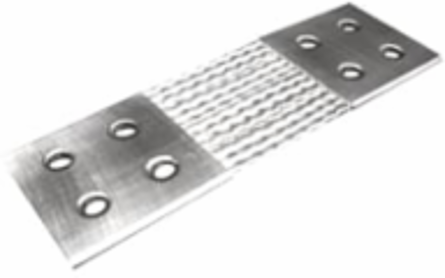

Blackburn SWD160A1610 Tinned Copper 24 Inch Flexible Braid Connector with 4 Hole NEMA Pads
- MPN: SWD160A1610
- UPC: 075114159005
- PPN: T-B-SWD160A1610
- UNSPSC: 39121465
CAD
$1108.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Tinned Copper, Standard Flexible Braid Connector, SWD Series, 4 Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center. 24 inch (610 mm) long, 4 inch (101.6 mm) wide, 1/4 inch (6.3 mm) thick. Pad 4 inch x 4 inch. 30 AWG Individual Strand.
Specifications
Additional Information
| Application | Suitable for connecting Transformer Links or Switchgear. |
|---|---|
| Cable Length | 610 mm |
| Conductor Shape | Flat |
| Material of Conductor | Tin-Plated Copper |
| Product Type | Standard Flexible Braid Connector - 4-Hole |
| Standards | IEEE/ANSI C37.34 |
| Brand / Label | Boreal |
|---|---|
| Conductor Category | Very Flexible |
| Effective Date | 20140225 |
| Product Name | ELECTRICAL FLEX BRAID |
| Special Functions | Tin Plated for High Conductivity and Corrosion Resistance. 4 Hole NEMA Pads |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4695 >> Flexible braid |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
