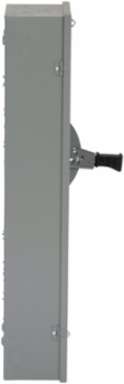

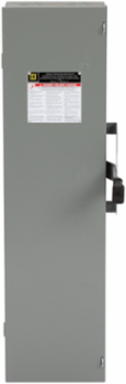

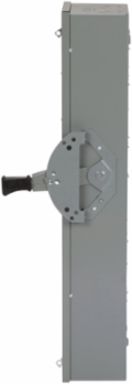

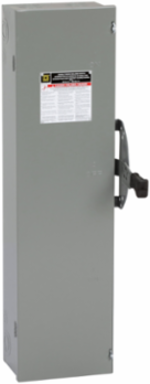

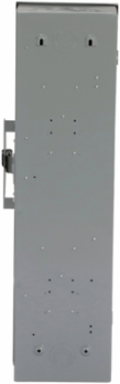

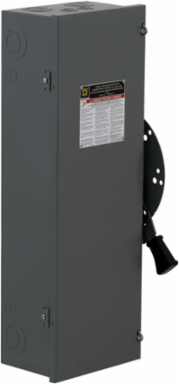

Square D DT323 Safety switch, double throw, fusible, 100A, 240VAC, 250VDC, 3 pole, 30hp, NEMA 1
Square D DT323 Safety switch, double throw, fusible, 100A, 240VAC, 250VDC, 3 pole, 30hp, NEMA 1
- MPN: DT323
- UPC: 785901308423
- PPN: SCH-DT323
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1888.11/ EA
Description

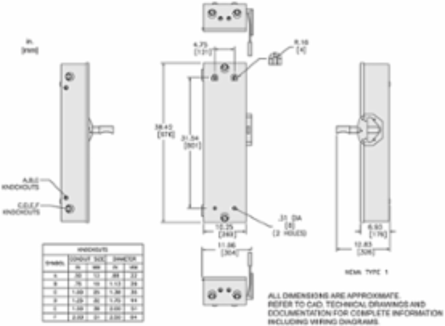

The Square D™ by Schneider Electric brand Double Throw Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for Residential, light commercial, and industrial installations. Double throw safety switches transfer a load from one power source to another power source. 30A-100A F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require and switches can be field-converted to transfer a power source from one load to another. These switches come in fusible or non-fusible configurations and my be padlocked in the ON-OFF positions. This Double Throw Safety Switch has a rated current of 100A. This fusible disconnect is surface mounted and has a NEMA 1 protection rating. This Double Throw Safety Switch comply's to UL listed certifications. Dimensions for this product are 11.13 in (H),38 in (W),6.75 in (D). This procuct comes with an 18 month warranty.
Specifications
Environment
- Product Certifications
- UL listed
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1307076EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes
Complementary
- Height
- 38 in
- Tightening Torque
- 35-35 lbf.in 2.06-5.26 mm² AWG 14...AWG 1/0) || 40-40 lbf.in 8.37-8.37 mm² AWG 8) || 45-45 lbf.in 13.30-53.48 mm² AWG 8) || 50-50 lbf.in 26.67-53.48 mm² AWG 6...AWG 4)
- Awg Gauge
- AWG 12...AWG 1/0 aluminum || AWG 14...AWG 1/0 copper
- Depth
- 6.75 in
- Net Weight
- 20.4 kg
Device Mountingsurface
Fuse TypeH or K || R or J
Width11.13 in
Short-Circuit Current10 kA H or K || 200 kA R or J
Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 1
- Product Or Component Type
- Double Throw Safety Switch
- Number Of Poles
- 3
Disconnector Device Typefusible disconnect
[In] Rated Current100 A
Device Compositionnone
[Ue] Rated Operational Voltage240 V AC || 250 V DC
