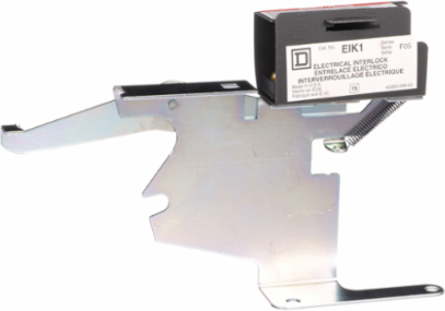

Square D EIK1 General Duty Safety Switch, 100A-200A, 1 x NO, 1 x NC, SPDT
- MPN: EIK1
- UPC: 785901751304
- PPN: SCH-EIK1
CAD
$265.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. They also come with many field installable or factory installed accessories. This electrical interlock for switches rated 100A to 200A comes in kit form for field installation. A pivot arm operates from switch mechanism, breaking the control circuit before the main switch blades break. Each kit contains instructions for proper field mounting. It is UL listed.
Features
- Featuring a Single Pole Double Throw (SPDT) configuration with one Normally Open and one Normally Closed contact, this kit integrates auxiliary signaling directly with your heavy-duty disconnect. It allows industrial electricians to seamlessly interlock peripheral systems such as signaling a PLC on switch status, triggering indicator lights, or disabling control loops before the main power blades engage, ensuring synchronized equipment automation and protecting nearby machinery.
- Engineered precisely for Schneider Electric's family of 100-Amp and 200-Amp General Duty safety switches, this internal kit provides an exact, drop-in mechanical alignment. It eliminates mounting guesswork, clearance issues, and field modifications, ensuring that the heavy internal mechanism moves in perfect alignment with the external operating handle, preventing binding or premature hardware failure.
- By installing this kit as an electrical interlock, the contacts can be configured to open before the main power poles of the safety switch break. This mechanical lead time allows control circuits to safely drop out magnetic contactors or variable frequency drives (VFDs) first, completely eliminating high-energy inductive arcing across the main switch blades and greatly extending your electrical infrastructure's service life.
- As an authentic, factory-certified Square DTM accessory, the EIK1 maintains the original UL and CSA listings of your host 100A or 200A safety switch when installed per instructions. This guarantees compliance with rigid national electrical codes during local safety audits, giving facility managers and insurance adjusters complete peace of mind regarding operational liability.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth1.48 in
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL Listed, CSA
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 4
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1904
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Destination
- safety switch
- Returnability
- Yes
- Switch Function
- SPDT
- Height Nominal
- 4.343 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536509065
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeinterlock
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal7.263 in
Package Weight(Lbs)290.299 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
General Attributes
- Product Or Component Type
- interlock
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
