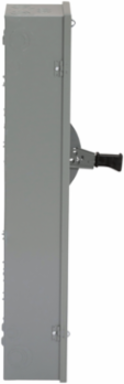

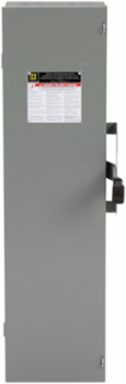

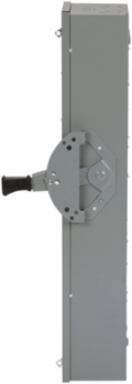

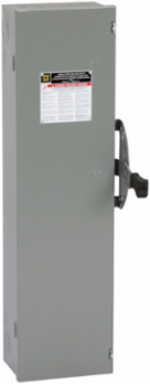

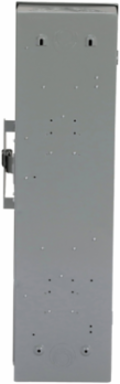

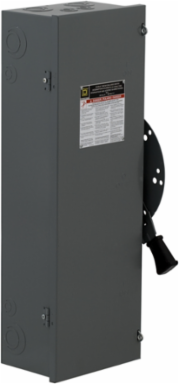

Square D DT363 Safety switch, double throw, fusible, 100A, 600V, 3 pole, 75HP, NEMA 1
Square D DT363 Safety switch, double throw, fusible, 100A, 600V, 3 pole, 75HP, NEMA 1
- MPN: DT363
- UPC: 785901308461
- PPN: SCH-DT363
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1998.89/ EA
Description

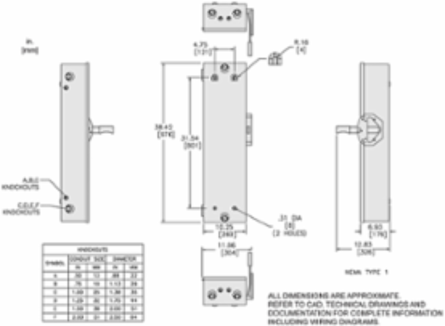

The Square D™ by Schneider Electric brand Double Throw Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for Residential, light commercial, and industrial installations. Double throw safety switches transfer a load from one power source to another power source. 30A-100A F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require and switches can be field-converted to transfer a power source from one load to another. These switches come in fusible or non-fusible configurations and my be padlocked in the ON-OFF positions. This Double Throw Safety Switch has a rated current of 100A. This fusible disconnect is surface mounted and has a NEMA 1 protection rating. This Double Throw Safety Switch comply's to UL listed certifications. Dimensions for this product are 11.13 in (H),38 in (W),6.75 in (D). This procuct comes with an 18 month warranty.
Specifications
Environment
- Product Certifications
- UL listed
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1307076EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
Complementary
- Height
- 38 in
- Tightening Torque
- 35-35 lbf.in 2.06-5.26 mm² AWG 14...AWG 1/0) || 40-40 lbf.in 8.37-8.37 mm² AWG 8) || 45-45 lbf.in 13.30-53.48 mm² AWG 8) || 50-50 lbf.in 26.67-53.48 mm² AWG 6...AWG 4)
- Net Weight
- 20.4 kg
- Awg Gauge
- AWG 12...AWG 1/0 aluminum || AWG 14...AWG 1/0 copper
- Depth
- 6.75 in
Device Mountingsurface
Short-Circuit Current10 kA H or K || 200 kA R or J
Fuse TypeH or K || R or J
Width11.13 in
Specifications
- Disconnector Device Type
- fusible disconnect
- Series Name
- heavy duty
- [In] Rated Current
- 100 A
- Number Of Poles
- 3
Product Or Component TypeDouble Throw Safety Switch
Nema Degree Of ProtectionNEMA 1
Device Compositionnone
[Ue] Rated Operational Voltage600 V AC || 600 V DC
